7784ALY - 7784ALY - Triax 11, 15 AWG Solid SPC, Double BC Braids, LSZH-C Jkt

7784ALY – 7784ALY – Triax 11, 15 AWG Solid SPC, Double BC Braids, LSZH-C Jkt

Call for Price

Compare
SKU: 7784ALY Categories: , , ,

Description

Product Overview

Suitable Applications: Analog Video; Interconnect camera to CCU (camera control unit)

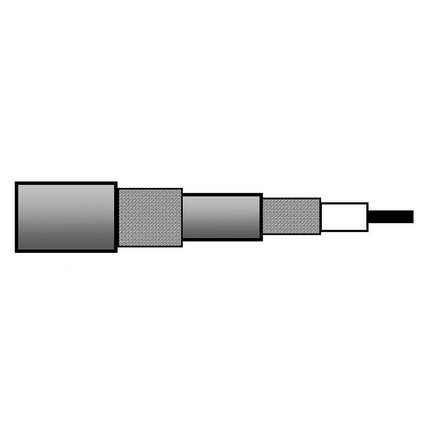

Construction Details

Series Type: Triax 8/11/14
Conductor
No. of Elements Size Stranding Nom. Diameter Material
1 15 AWG Solid 1.4 mm SC – Silvered Copper
Insulation
Element Material Nom. Insulation Diameter
Insulated Conductor PE – Polyethylene (Foam) 6.5 mm (0.26 in)
Inner Shield
Shield Type Material Coverage
Braid Silvered Copper (SC) 80%
Inner Jacket
Material Nom. Diameter
LSZH – Low Smoke Zero Halogen (Flame Retardant) 8.5 mm (0.33 in)
Outer Shield
Outer Shield Type Material Coverage
Braid Bare Copper (BC) 80%
Outer Jacket
Material Nom. Diameter
LSZH – Low Smoke Zero Halogen (Flame Retardant) 11.2 mm (0.441 in)

Electrical Characteristics

Attenuation
Frequency Nom. Attenuation
5 MHz 1.2 dB/100m
50 MHz 3.6 dB/100m
71.5 MHz 4.3 dB/100m
88.5 MHz 4.8 dB/100m
100 MHz 5.2 dB/100m
180 MHz 7.1 dB/100m
270 MHz 8.8 dB/100m
750 MHz 15.2 dB/100m
1000 MHz 18 dB/100m
1500 MHz 22 dB/100m
2000 MHz 26 dB/100m
2500 MHz 32 dB/100m
3000 MHz 34 dB/100m
Electricals
Nom. Conductor DCR Nom. Inner Shield DCR Nom. Outer Shield DCR Nom. Capacitance
Cond-to-Shield		 Nom. Characteristic Impedance Nom. Velocity of Prop.
11 Ohm/km (3.4 Ohm/1000ft) 9 Ohm/km (2.7 Ohm/1000ft) 7 Ohm/km (2.1 Ohm/1000ft) 55 pF/m (17 pF/ft) 75 Ohm 81%
Screening
Frequency Min. Screening Attenuation
30 – 850 MHz 75 dB

Mechanical Characteristics

Temperature
Operating Installation Storage
-30°C To +70°C -5°C To +70°C -30°C To +70°C
Bend Radius
Stationary Min.
110 mm (4.3 in)
Max. Pull Tension: 300 N (67 lbf)

Standards and Compliance

Environmental Suitability: Indoor/Outdoor – Euroclass Dca
Flammability / Reaction to Fire: IEC 60332-3-24
CPR Compliance: CPR Euroclass: Dca-s1,d2,a1
ISO/IEC Compliance: IEC 61034-2 – Smoke Density Min Transmittance = 60%
CENELEC Compliance: EN 50117-1EN 50290-2-20
European Halogen Free Standards: IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 – Halogen Amount = Zero, IEC 60754-2 – Halogen Acid Gas Amount – Max. Conductivity = 2.5 µS/mm, IEC 60754-2 – Halogen Acid Gas Amount – Min. pH = 4.3
European Directive Compliance: EU CE Mark
UK Regulation Compliance: UKCA Mark
Other Standard Compliance(s): SDTV/HDTV

History

Update and Revision: Revision Number: 0.5 Revision Date: 03-30-2023
