7784AF - 7784AF - Triax 11, 15 AWG Str SPC, SPC + BC Braids, PVC Jkt

7784AF – 7784AF – Triax 11, 15 AWG Str SPC, SPC + BC Braids, PVC Jkt

Call for Price

Compare
SKU: 7784AF Categories: , , ,

Description

Product Overview

Suitable Applications: Analog Video; Interconnect camera to CCU (camera control unit)

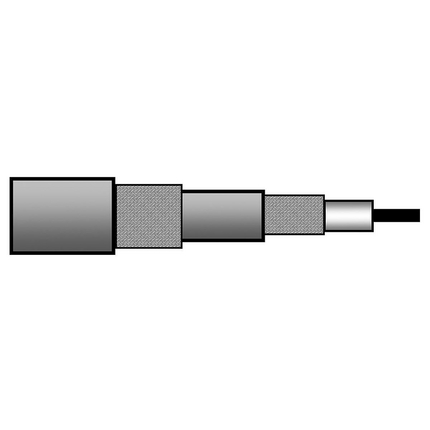

Construction Details

Series Type: Triax 8/11/14
Conductor
No. of Elements Size Stranding Nom. Diameter Material
1 15 AWG Stranded 1.42 mm SC – Silvered Copper
Insulation
Material Nom. Insulation Diameter
PE – Polyethylene (Foam) 6.5 mm (0.26 in)
Inner Shield
Shield Type Material Coverage
Braid Silvered Copper (SC) 80%
Inner Jacket
Material Nom. Diameter
PE – Polyethylene 8.5 mm (0.33 in)
Outer Shield
Outer Shield Type Material Coverage
Braid Bare Copper (BC) 80%
Outer Jacket
Material Nom. Diameter
PVC – Polyvinyl Chloride 11.3 mm

Electrical Characteristics

Attenuation
Frequency Nom. Attenuation
1 MHz 0.5 dB/100m
5 MHz 1.1 dB/100m
10 MHz 1.7 dB/100m
100 MHz 5.6 dB/100m
360 MHz 11.5 dB/100m
750 MHz 17.1 dB/100m
Electricals
Nom. Inner Shield DCR Nom. Outer Shield DCR Nom. Capacitance
Cond-to-Shield		 Nom. Characteristic Impedance Nom. Velocity of Prop.
9 Ohm/km (2.7 Ohm/1000ft) 7 Ohm/km (2.1 Ohm/1000ft) 54 pF/m (16 pF/ft) 75 Ohm 82%
Screening
Frequency Min. Screening Attenuation
30 – 850 MHz 75 dB

Mechanical Characteristics

Temperature
Operating Installation Storage
-40°C To +70°C -5°C To +70°C -40°C To +70°C
Bend Radius
Stationary Min.
115 mm (4.53 in)
Max. Pull Tension: 270 N (61 lbf)
Bulk Cable Weight: 136 kg/km

Standards and Compliance

Environmental Suitability: Indoor
Flammability / Reaction to Fire: IEC 60332-1-2

History

Update and Revision: Revision Number: 0.201 Revision Date: 04-08-2022

Part Numbers

Variants
Item # Color Putup Type Length EAN
7784AF.041000 Red Reel 1,000 m 8719605014191
