7783ECH - 7783ECH - Triax 8, RG-6, 18 AWG SBC, Double BC Braids, LSZH-C Jkt

7783ECH – 7783ECH – Triax 8, RG-6, 18 AWG SBC, Double BC Braids, LSZH-C Jkt

Call for Price

Compare
SKU: 7783ECH Categories: , , ,

Description

Product Overview

Suitable Applications: Analog Video; Interconnect camera to CCU (camera control unit)

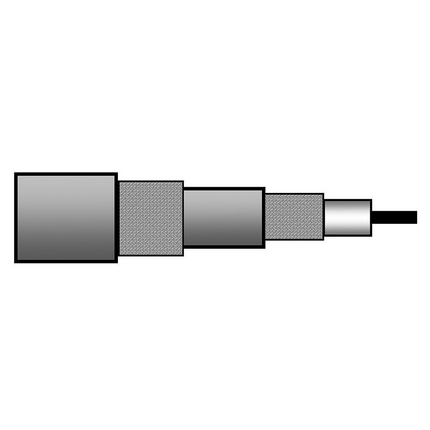

Construction Details

Series Type: Triax 8/11/14
Conductor
No. of Elements Size Stranding Nom. Diameter Material
1 18 AWG Solid 1.02 mm BC – Bare Copper
Insulation
Element Material Nom. Insulation Diameter
Insulated Conductor PE – Polyethylene (Foam) 4.57 mm (0.180 in)
Inner Shield
Shield Type Material Coverage
Braid Bare Copper (BC) 80%
Inner Jacket
Material Nom. Diameter
LSZH – Low Smoke Zero Halogen (Flame Retardant) 6.6 mm (0.26 in)
Outer Shield
Outer Shield Type Material Coverage
Braid Bare Copper (BC) 80%
Outer Jacket
Material Nom. Diameter
LSZH – Low Smoke Zero Halogen (Flame Retardant) 8.4 mm

Electrical Characteristics

Attenuation
Frequency Nom. Attenuation
1 MHz 0.7 dB/100m
5 MHz 1.5 dB/100m
10 MHz 2.2 dB/100m
70 MHz 5.7 dB/100m
100 MHz 6.9 dB/100m
140 MHz 8.2 dB/100m
200 MHz 9.8 dB/100m
300 MHz 12.2 dB/100m
400 MHz 14.2 dB/100m
500 MHz 16 dB/100m
700 MHz 19.1 dB/100m
800 MHz 20.5 dB/100m
1000 MHz 23.2 dB/100m
1500 MHz 29 dB/100m
2000 MHz 34 dB/100m
2400 MHz 37.8 dB/100m
Electricals
Nom. Conductor DCR Nom. Inner Shield DCR Nom. Outer Shield DCR Nom. Capacitance
Cond-to-Shield		 Nom. Characteristic Impedance Nom. Velocity of Prop.
22 Ohm/km 13 Ohm/km (4.0 Ohm/1000ft) 8.5 Ohm/km (2.6 Ohm/1000ft) 52 pF/m (16 pF/ft) 75 Ohm 83%
Voltage
Voltage Rating
400 V RMS
Table Notes: Maximum operating

Mechanical Characteristics

Temperature
Operating Installation Storage
-30°C To +70°C -5°C To +70°C -30°C To +70°C
Bend Radius
Stationary Min.
80 mm (3.1 in)
Max. Pull Tension: 250 N (56 lbf)

Standards and Compliance

Environmental Suitability: Indoor
Flammability / Reaction to Fire: IEC 60332-3-24
CPR Compliance: CPR Euroclass: Eca
European Halogen Free Standards: IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 – Halogen Amount = Zero, IEC 60754-2 – Halogen Acid Gas Amount – Max. Conductivity = 2.5 µS/mm, IEC 60754-2 – Halogen Acid Gas Amount – Min. pH = 4.3
European Directive Compliance: EU CE Mark
UK Regulation Compliance: UKCA Mark

History

Update and Revision: Revision Number: 0.213 Revision Date: 12-19-2022

Part Numbers

Variants
Item # Color Putup Type Length EAN
7783ECH.01500 Red Reel 500 m 8719605014177
7783ECH.011000 Red Reel 1,000 m 8719605014160
