7783AF - 7783AF - Triax 8, RG-6, 18 AWG Str SPC, SPC + BC Braids, PVC Jkt

7783AF – 7783AF – Triax 8, RG-6, 18 AWG Str SPC, SPC + BC Braids, PVC Jkt

Call for Price

Compare
SKU: 7783AF Categories: , , ,

Description

Product Overview

Suitable Applications: Analog Video; Interconnect camera to CCU (camera control unit)

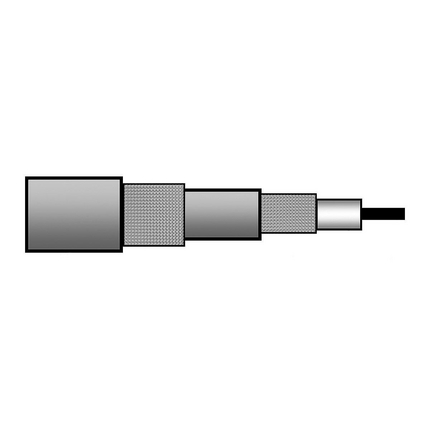

Construction Details

Series Type: Triax 8/11/14
Conductor
No. of Elements Size Stranding Nom. Diameter Material
1 14 AWG Stranded 0.99 mm SC – Silvered Copper
Insulation
Element Material Nom. Insulation Diameter
Insulated Conductor PE – Polyethylene (Foam) 4.52 mm (0.178 in)
Inner Shield
Shield Type Material Coverage
Braid Silvered Copper (SC) 80%
Inner Jacket
Material Nom. Diameter
PE – Polyethylene 6.6 mm (0.26 in)
Outer Shield
Outer Shield Type Material Coverage
Braid Bare Copper (BC) 80%
Outer Jacket
Material Nom. Diameter
PVC – Polyvinyl Chloride 8.4 mm

Electrical Characteristics

Attenuation
Frequency Nom. Attenuation
1 MHz 0.6 dB/100m
10 MHz 2.2 dB/100m
20 MHz 3.2 dB/100m
40 MHz 4.6 dB/100m
50 MHz 5.1 dB/100m
60 MHz 5.6 dB/100m
100 MHz 7.5 dB/100m
300 MHz 13.8 dB/100m
Electricals
Nom. Conductor DCR Nom. Inner Shield DCR Nom. Outer Shield DCR Nom. Capacitance
Cond-to-Shield		 Nom. Characteristic Impedance Nom. Velocity of Prop.
32 Ohm/km 14 Ohm/km (4.3 Ohm/1000ft) 9 Ohm/km (2.7 Ohm/1000ft) 52 pF/m (16 pF/ft) 75 Ohm 83%
Screening
Frequency Min. Screening Attenuation
30 – 1000 MHz 75 dB

Mechanical Characteristics

Temperature
Operating Installation Storage
-40°C To +70°C -5°C To +70°C -40°C To +70°C
Bend Radius
Stationary Min.
80 mm (3.1 in)
Max. Pull Tension: 250 N (56 lbf)

Standards and Compliance

Environmental Suitability: Indoor
Flammability / Reaction to Fire: IEC 60332-1-2
European Directive Compliance: EU CE Mark

History

Update and Revision: Revision Number: 0.206 Revision Date: 04-08-2022

Part Numbers

Variants
Item # Color Putup Type Length EAN
7783AF.06500 Black Reel 500 m 8719605014108
7783AF.04500 Red Reel 500 m 8719605014078
7783AF.041000 Red Reel 1,000 m 8719605014061
