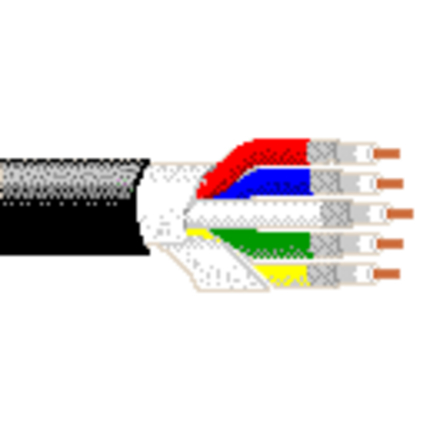

7712A - VideoFLEX® Snake, RG6, 5 Coax 18 AWG, Riser

7712A – VideoFLEX® Snake, RG6, 5 Coax 18 AWG, Riser

Call for Price

Compare
SKU: 7712A Categories: , ,

Description

Product Overview

Suitable Applications: Video Mult.

Physical Characteristics (Overall)

Conductor
AWG Stranding Material Nominal Diameter No. of Coax
18 Solid BC – Bare Copper 0.04 in 5
Conductor Count: 5
Insulation
Material Nominal Diameter
PE – Polyethylene (Foam) 0.18 in
Table Notes: Gas Injected
Inner Shield
Type Layer Material Material Trade Name Coverage [%]
Tape 1 Tri-Laminate (Alum+Poly+Alum) Duofoil® 100%
Braid 2 Tinned Copper (TC) 95%
Inner Jacket
Material Nominal Diameter
PVC – Polyvinyl Chloride 0.275 in
Outer Shield
Material
No Shield
Outer Jacket
Material Nominal Diameter
PVC – Polyvinyl Chloride 0.97 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR Nominal Inner Shield DCR Outer Conductor DCR
6.4 Ohm/1000ft 3 Ohm/1000ft 3.0 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Shield
16.2 pF/ft
Impedance
Nominal Characteristic Impedance
75 Ohm
Return Loss (RL)
Frequency [MHz] Minimum Return (RL)
5 – 1600 MHz 23 dB
1600 – 4500 MHz 21 dB
4500 – 6000 MHz 15 dB
High Frequency (Nominal/Typical)
Frequency [MHz] Nom. Insertion Loss
1 MHz 0.24 dB/100ft
3.58 MHz 0.44 dB/100ft
5 MHz 0.52 dB/100ft
7 MHz 0.61 dB/100ft
10 MHz 0.71 dB/100ft
67.5 MHz 1.65 dB/100ft
71.5 MHz 1.69 dB/100ft
88.5 MHz 1.86 dB/100ft
100 MHz 1.95 dB/100ft
135 MHz 2.24 dB/100ft
143 MHz 2.3 dB/100ft
180 MHz 2.57 dB/100ft
270 MHz 3.17 dB/100ft
360 MHz 3.69 dB/100ft
540 MHz 4.6 dB/100ft
720 MHz 5.38 dB/100ft
750 MHz 5.5 dB/100ft
1000 MHz 6.42 dB/100ft
1500 MHz 7.99 dB/100ft
2000 MHz 9.37 dB/100ft
2250 MHz 10.01 dB/100ft
3000 MHz 11.78 dB/100ft
4500 MHz 14.7 dB/100ft
6000 MHz 17.7 dB/100ft
Delay
Nominal Delay Nominal Velocity of Propagation (VP) [%]
1.24 ns/ft 82%
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

Non-UL Temp Rating: 75°C
UL Temp Rating: 60°C
Operating Temperature Range: -40°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 384 lbs/1000ft
Max. Pull Tension: 345 lbs
Min. Bend Radius/Minor Axis: 10 in

Standards

NEC/(UL) Compliance: CMR
CEC/C(UL) Compliance: CMG
UL AWM Style Compliance: AWM 1354 (each coax), AWM 2688 (overall)
CPR Euroclass: Eca
RG Type: 6

Applicable Environmental and Other Programs

Environmental Space: Indoor/Outdoor
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (RoHS 2): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU (RoHS 2 amendment): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: No
MII Order #39 (China RoHS): Yes

Suitability

Suitability – Indoor: Yes
Suitability – Outdoor: Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: UL1666 Vertical Shaft
CSA Flammability: FT4
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No

Related Part Numbers

Variants
Item # Color Put-Up Type Length UPC
7712A B59500 Black, Matte Reel 500 ft 612825357254
7712A B591000 Black, Matte Reel 1,000 ft 612825357261
Footnote: C – CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.399 Revision Date: 12-19-2022
