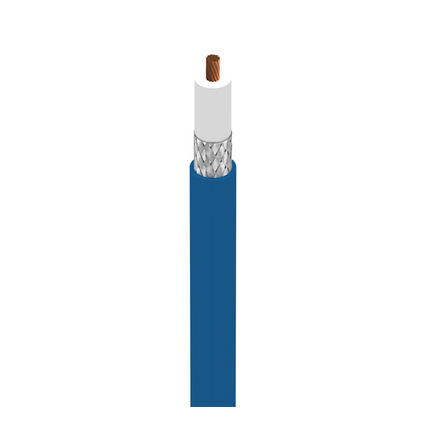

7501A - MachFlex™, Vision Coax 75?, #25 Str BC, PO Ins, OA TC Brd, PVC Jkt, AWM 1354

7501A – MachFlex™, Vision Coax 75?, #25 Str BC, PO Ins, OA TC Brd, PVC Jkt, AWM 1354

Call for Price

Compare
SKU: 7501A Categories: , ,

Description

Physical Characteristics (Overall)

Conductor
AWG Stranding Material Nominal Diameter No. of Coax
25 19×38 BC – Bare Copper 0.019 in 1
Conductor Count: 1
Insulation
Material Nominal Diameter
PE – Polyethylene (Foam) 0.09 in
Outer Shield
Type Material Coverage [%]
French Braid Tinned Copper (TC) 95%
Outer Jacket
Material Material Trade Name Nominal Diameter
PVC – Polyvinyl Chloride Belflex® 0.146 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR Nominal Outer Shield DCR Outer Conductor DCR
35 Ohm/1000ft 9.1 Ohm/1000ft 9.1 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Shield
17.7 pF/ft
Inductance
Nominal Inductance
0.097 µH/ft
Impedance
Nominal Characteristic Impedance
75 Ohm
High Frequency (Nominal/Typical)
Frequency [MHz] Nom. Insertion Loss
2.2 MHz 0.6 dB/100ft
5 MHz 0.9 dB/100ft
10 MHz 1.3 dB/100ft
30 MHz 2.2 dB/100ft
50 MHz 2.9 dB/100ft
100 MHz 4.2 dB/100ft
Delay
Nominal Delay Nominal Velocity of Propagation (VP) [%]
1.3 ns/ft 77%
High Frequency
Frequency [MHz]
2.2 MHz
5 MHz
10 MHz
30 MHz
50 MHz
100 MHz
Voltage
UL Voltage Rating
30 V RMS

Temperature Range

Non-UL Temp Rating: 80°C
Operating Temperature Range: -40°C To +80°C

Mechanical Characteristics

Flex Cycle Rating: 1 Million
Bulk Cable Weight: 13 lbs/1000ft
Max. Pull Tension: 22 lbs
Min. Bend Radius (Continuous Flexing): 3 in
Min. Bend Radius/Minor Axis: 1.5 in

Standards

UL AWM Style Compliance: AWM 1354
CSA AWM Compliance: AWM I/II A/B

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2011/65/EU (RoHS 2): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU (RoHS 2 amendment): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

UL voltage rating: 30 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No

Related Part Numbers

Variants
Item # Color Put-Up Type Length UPC
7501A G7X1000 Blue, Matte Reel 1,000 ft 612825187226
Footnote: C – CRATE REEL PUT-UP., Z – FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.

History

Update and Revision: Revision Number: 0.390 Revision Date: 05-05-2023
