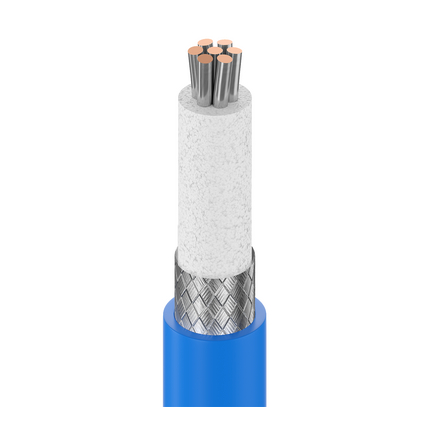

7500A – MachFlex™, Vision Coax 75?, #30 Str Tinned Alloy, FPE Ins, OA TC Brd, PVC Jkt, High Flex, AWM 1354

Call for Price

parts-139

(SKU: 103-191021001) – MicroFlow drive wheel A 2.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-138

(SKU: 103-191021002) – MicroFlow drive wheel B 2.5 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-139

(SKU: 103-191021003) – MicroFlow drive wheel C 3.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-136

(SKU: 103-191021004) – MicroFlow drive wheel D 6.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-119

(SKU: 103-171114001) – MicroFlow sensor arm set 1.5 mm – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$321.10

parts-118

(SKU: 103-171114002) – MicroFlow sensor arm set 2.0 mm – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$321.10

Description

Product Overview

Suitable Applications: Automation, Robotics, Vision Control

Construction Details

Conductor
Size Stranding Nom. Diameter Material
30 AWG 7×38 0.012 in TCA – Tinned Copper Alloy
Insulation
Material Nom. Insulation Diameter Color Code
PE – Polyethylene (Foam) 0.056 in (1.4 mm) White
Outer Shield
Outer Shield Type Material Coverage
French Braid Tinned Copper (TC) 95%
Outer Jacket
Material Nom. Diameter
PVC – Polyvinyl Chloride 0.110 in (2.79 mm)
Overall Cable Diameter (Nominal): 0.110 in (2.79 mm)

Electrical Characteristics

Attenuation
Frequency Nom. Attenuation
2.2 MHz 0.9 dB/100ft
5 MHz 1.4 dB/100ft
10 MHz 2.0 dB/100ft
30 MHz 3.4 dB/100ft
50 MHz 4.4 dB/100ft
100 MHz 6.4 dB/100ft
Electricals
Nom. Conductor DCR Nom. Outer Shield DCR Nom. Capacitance
Cond-to-Shield		 Nom. Characteristic Impedance Nom. Velocity of Prop.
108 Ohm/1000ft 13.3 Ohm/1000ft (43.6 Ohm/km) 17.3 pF/ft (56.8 pF/m) 75 Ohm 78%
Voltage
UL Voltage Rating
30 V (UL AWM 1354)

Mechanical Characteristics

Temperature
UL Temperature Operating
80°C -35°C to +80°C
Bend Radius
Installation Min. Flexing Min.
1.1 in (28 mm) 2.2 in (56 mm)
Max. Pull Tension: 14 lbs (6.4 kg)
Bulk Cable Weight: 8 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
Sustainability: CA Prop 65
Flammability / Reaction to Fire: UL 1581 Horizontal Wire, FT1
AWM Compliance: AWM 1354, AWM I/II A/B
CEC / C(UL) Compliance: LL7874
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.538 Revision Date: 08-02-2023

Part Numbers

Variants
Item # Color Putup Type Length UPC Footnote
7500A G7X1000 Blue, Matte Reel 1,000 ft 612825187202 Z
