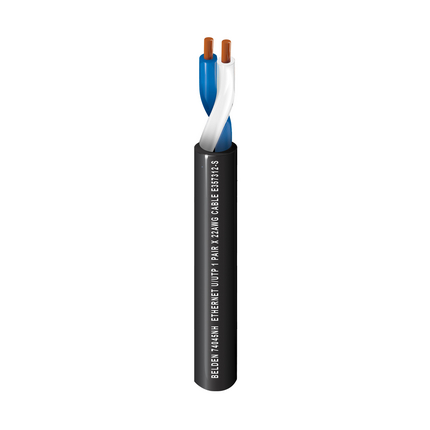

74045NH - DataTuff Ind SPE 400m10Mb 22AWG SO U/UTP LSZH

74045NH – DataTuff Ind SPE 400m10Mb 22AWG SO U/UTP LSZH

Call for Price

Compare
SKU: 74045NH Categories: , , ,

Description

Product Overview

Suitable Applications: Long distance sensors in harsh environment at Industrial edge, 1 single pair Ethernet up to 20 MHz. IEEE 802.3cg(10Base-T1L)

Construction Details

Conductor
Size Material
22 AWG BC – Bare Copper
Insulation
Material Nom. Insulation Diameter Color Code
PE – Polyethylene 1.24 mm (0.0488 in) White, Blue
Outer Jacket
Material
LSZH – Low Smoke Zero Halogen (Flame Retardant)
Overall Cable Diameter (Nominal): 3.70 mm (0.146 in)

Electrical Characteristics

Electricals
Max. Conductor DCR
59.1 ?/km
Table Notes: Min. resistance unbalance within a pair is 2%
High Frequency
Frequency Max. Insertion Loss (Attenuation) Min. RL (Return Loss) [dB] Min. TCL [dB] Nom. Characteristic Impedance [Ohm]
0.1 1.37 dB 15 50
1 MHz 2.08 dB 15 50
4 MHz 3.81 dB 23 50
10 MHz 5.93 dB 25 50
20 MHz 8.38 25 50 100
Table Notes: Characteristic Impedence at 20 MHz with tolerance of ± 15
Voltage
UL Voltage Rating Breakdown Voltage
300 V 2KVac/min

Mechanical Characteristics

Temperature
Operating
-40 ? to + 80?
Bulk Cable Weight: 17.57 kg/km (11.81 lbs/1000ft)

Standards and Compliance

AWM Compliance: AWM 21307
Data Category: SPE 10 Mbps
ISO/IEC Compliance: IEC 61156-13, UL 758, IEC 61034-2 – Smoke Density Min Transmittance = 70%
European Halogen Free Standards: IEC 60754-2 – Halogen Acid Gas Amount – Max. Conductivity = 10 , IEC 60754-2 – Halogen Acid Gas Amount – Min. pH = 4.3
European Directive Compliance: EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2)
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.16 Revision Date: 02-15-2024
