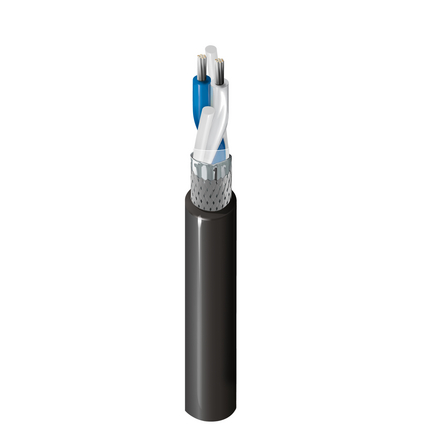

74041NH - DataTuff Ind SPE 1km10Mb 22AWG STR SF/UTP LSZH

74041NH – DataTuff Ind SPE 1km10Mb 22AWG STR SF/UTP LSZH

Call for Price

Compare
SKU: 74041NH Categories: , , ,

Description

Product Overview

Suitable Applications: Long distance sensors in harsh environment at Industrial edge, 1 single pair Ethernet up to 20 MHz

Construction Details

Conductor
Size Stranding Material
22 AWG 7×0.25 mm TC – Tinned Copper
Insulation
Material Nom. Insulation Diameter Color Code
PE – Polyethylene (Foam) 1.65 mm (0.0650 in) White, Blue
Outer Shield
Shield Type Material Coverage Notes
Tape Polyester 100%
Tape Bi-Laminate (Alum+Poly) 100%
Braid Tinned Copper (TC) 80% 23 AWG Stranded Drain wire along with shielding
Outer Jacket
Material
LSZH – Low Smoke Zero Halogen (Flame Retardant)
Overall Cable Diameter (Nominal): 5.3 mm (0.21 in)

Electrical Characteristics

Electricals
Max. Conductor DCR Max. Capacitance Unbalance Nom. Characteristic Impedance
59.4 Ohm/km at 20°C 160 pF/100m 100 Ohm
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. RL (Return Loss) [dB] Min. TCL [dB] Min. ELTCTL [dB] Max. Surface Transfer Impedance Nom. Characteristic Impedance [Ohm]
0.1 1.5 15 50 55
1 2.2 20 40 35 50
4 3.9 23 31 23 75.9
10 6.1 25 25 15 100
20 8.6 25 20.5 9 154.9
100
Voltage
UL Voltage Rating Breakdown Voltage
300 V 2 Kvac/min.

Mechanical Characteristics

Temperature
Operating
-20°C To +80°C

Standards and Compliance

Flammability / Reaction to Fire: FT2
AWM Compliance: AWM 21307
ISO/IEC Compliance: IEC 61156-xx, UL 758
APAC Compliance: China RoHS II (GB/T 26572-2011)

Product Notes

Notes: Flame Test: EN50575 Dca-s2,d2,a2

History

Update and Revision: Revision Number: 0.4 Revision Date: 03-15-2024
