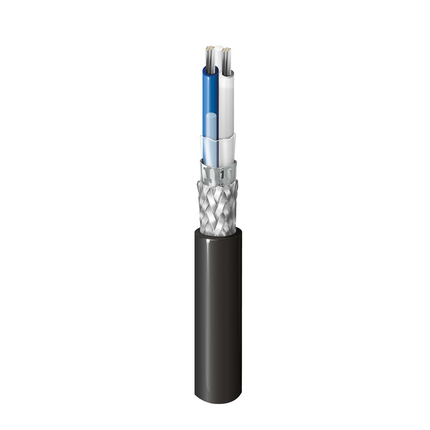

Product Overview
| Suitable Applications: |
Long distance sensors in harsh environment at Industrial edge, 1 single pair Ethernet up to 20 MHz |
Physical Characteristics (Overall)
| AWG |
Stranding |
Material |
No. of Pairs |
| 22 |
7×0.25 mm |
TC – Tinned Copper |
1 |
| Material |
Nominal Diameter |
| PE – Polyethylene (Foam) |
1.65 mm |
| Type |
Material |
Coverage [%] |
| Tape |
Polyester |
100% |
| Tape |
Bi-Laminate (Alum+Poly) |
100% |
| Braid |
Tinned Copper (TC) |
80% |
| Material |
Nominal Diameter |
| PVC – Polyvinyl Chloride |
5.10 mm |
Construction and Dimensions
| Min Elongation at Breakof Conductors: |
8 % |
| Min Elongation at Breakof Insulation: |
100 % |
| Min Elongation at Breakof Jacket: |
100 MPa |
| Min Tensile Strength of Jacket: |
10.3 MPa |
Electrical Characteristics
| Max. Conductor DCR |
Max DCR Unbalanced Between Pairs [%] |
| 59.4 Ohm/km at 20°C |
2 % |
| Max. Capacitance Unbalance |
| 160 pF/100m |
| Dielectric Strength: |
2 kVac/1 min |
| Insulation Resistance: |
5000 MOhm*km |
| Nominal Characteristic Impedance |
| 100 Ohm |
| Frequency [MHz] |
Max. Insertion Loss (Attenuation) |
Min. RL (Return Loss) [dB] |
Min. TCL [dB] |
Min. ELTCTL [dB] |
| 0.1 MHz |
1.5 |
15 dB |
50 dB |
55 dB |
| 1 MHz |
2.2 |
20 dB |
40 dB |
35 dB |
| 4 MHz |
3.9 |
23 dB |
31 dB |
23 dB |
| 10 MHz |
6.1 |
25 dB |
25 dB |
15 dB |
| 20 MHz |
8.6 |
25 dB |
20.5 dB |
9 dB |
| Non-UL Voltage Rating |
| 300 V |
Temperature Range
| Operating Temperature Range: |
-30°C To +80°C |
Mechanical Characteristics
| Max Dielectric Shrinkage: |
5 % |
| Dielectric Shrinkage Description: |
Shrinkage of Insualtion (100+/2°CX1hr)/150mm |
| Hygroscopicity: |
Weight increasing not exceed 1% (for 3hrs) |
| Wicking: |
The filter paper shall not wet (for 6 hrs) |
| IRM 902 Mineral Oil Resistance Test: |
At 70C° x 4hr-
Tensile Strength: ? 60% of Original
Elongation at break:? 60% of Original |
| UV Resistance 720h per UL1581: |
(300h) Tensile Strength (Mpa) – 85% of original, Elongation at break (%) – 85% of original |
Standards
| UL AWM Style Compliance: |
AWM 2095 |
| CSA AWM Compliance: |
AWM I A/B |
| ISO/IEC Compliance: |
IEC 61156-xx, UL 758 |
| Data Category: |
SPE 10 Mbps |
Flammability, LS0H, Toxicity Testing
| CSA/C(UL) Flammability: |
FT2 |
Related Part Numbers
| Item # |
Color |
Put-Up Type |
Length |
| 74041E-A500 |
Black |
Reel |
500 m |
History
| Update and Revision: |
Revision Number: 0.75 Revision Date: 03-01-2024 |
