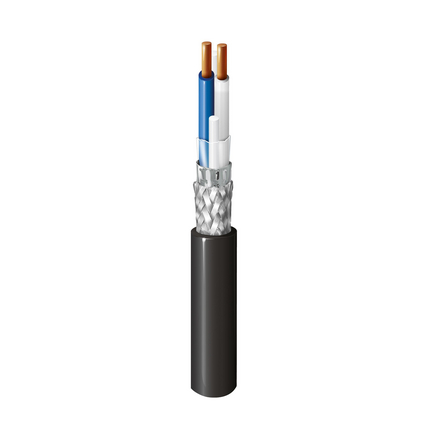

74040NH - DataTuff Ind SPE 1km10Mb 18AWG SO SF/UTP LSZH

74040NH – DataTuff Ind SPE 1km10Mb 18AWG SO SF/UTP LSZH

Call for Price

Compare
SKU: 74040NH Categories: , , ,

Description

Product Overview

Suitable Applications: Long distance sensors in harsh environment at Industrial edge, 1 single pair Ethernet up to 20 MHz

Physical Characteristics (Overall)

Conductor
AWG Stranding Material No. of Pairs
18 Solid BC – Bare Copper 1
Conductor Count: 2
Insulation
Material Nominal Diameter
PE – Polyethylene (Foam) 2.45 mm
Color Chart
Color
White & Blue
Cabling
Filler
1.58 mm
Outer Shield
Type Material Coverage [%]
Tape Polyester 100%
Tape Bi-Laminate (Alum+Poly) 100%
Braid Tinned Copper (TC) 80%
Outer Jacket
Material Nominal Diameter Min. Wall Thickness Nominal Wall Thickness
LSZH – Low Smoke Zero Halogen (Flame Retardant) 6.60 mm 0.38 mm 0.55 mm

Construction and Dimensions

Min Elongation at Breakof Conductors: 8 %
Min Elongation at Breakof Jacket: 100 MPa
Min Tensile Strength of Jacket: 9 MPa

Electrical Characteristics

Conductor DCR
Max. Conductor DCR Max DCR Unbalanced Between Pairs [%]
21.4 Ohm/km at 20°C 2 %
Capacitance
Max. Capacitance Unbalance
160 pF/100m
Dielectric Strength: 2 kVac/1 min
Insulation Resistance: 5000 MOhm*km
Impedance
Nominal Characteristic Impedance
100 Ohm
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. RL (Return Loss) [dB] Min. TCL [dB] Min. ELTCTL [dB]
0.1 MHz 1 15 dB 50 dB 55 dB
1 MHz 1.4 20 dB 40 dB 35 dB
4 MHz 2.6 23 dB 31 dB 23 dB
10 MHz 4.1 25 dB 25 dB 15 dB
20 MHz 5.7 25 dB 20.5 dB 9 dB
Voltage
Non-UL Voltage Rating
300 V

Temperature Range

Operating Temperature Range: -30°C To +80°C

Mechanical Characteristics

Cold Bend Test: No Crack
Hygroscopicity: Weight increasing not exceed 1% (for 3hrs)
Wicking: The filter paper shall not wet (for 6 hrs)

Standards

UL AWM Style Compliance: AWM 21307
ISO/IEC Compliance: IEC 61156-13, UL 758
Data Category: SPE 10 Mbps

Flammability, LS0H, Toxicity Testing

CSA/C(UL) Flammability: FT2
IEC 60754-2 – Halogen Acid Gas Amount – Max. Conductivity: 10
IEC 60754-2 – Halogen Acid Gas Amount – Min. pH: 4.3
IEC 61034-2 – Smoke Density Min. Transmittance: 60

Related Part Numbers

Variants
Item # Color Put-Up Type Length
74040NH-A500 Black Reel 500 m
74040NH-A1500 Black Reel 1,500 m

History

Update and Revision: Revision Number: 0.69 Revision Date: 02-15-2024
