Product Overview
| Suitable Applications: |
1 single pair Ethernet up to 600 MHz accord. IEEE 802.3bp (1000BASE-T1) |

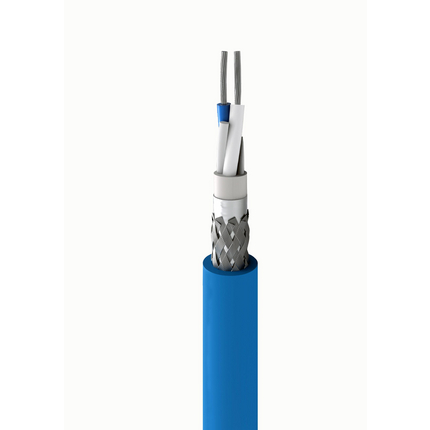

Construction Details
| Element |
Size |
Stranding |
Material |
No. of Pairs |
| Pair(s) |
26 AWG |
19×0.10 mm |
TC – Tinned Copper |
1 |
| Material |
Nom. Insulation Diameter |
Color Code |
| PE – Polyethylene |
1.1 mm (0.043 in) |
White, Blue |
| Material |
Color |
| TPE – Thermoplastic Elastomer |
White |
| Shield Type |
Material |
Coverage |
| Tape |
Polyester + Bi-Laminate (Alum+Poly) |
|
| Braid |
Tinned Copper (TC) |
80% |
| Material |
| PUR – Polyurethane (Halogen Free) |
| Overall Cable Diameter (Nominal): |
5.0 mm (0.20 in) |
Electrical Characteristics
| Max. Conductor DCR |
Nom. Characteristic Impedance |
| 150 ?/km @ 20°C |
100 Ohm |
| Frequency |
Max. Insertion Loss (Attenuation) |
Min. RL (Return Loss) [dB] |
Min. TCL [dB] |
Min. ELTCTL [dB] |
Max. Surface Transfer Impedance |
Min. Coupling Attenuation [dB] |
| 1 |
3.1 dB/100 m |
20 |
40 |
40 |
50 |
|
| 4 MHz |
5.6 dB/100 m |
23 |
40 |
28 |
75.9 |
|
| 10 MHz |
8.7 dB/100 m |
25 |
35 |
20 |
100 |
|
| 20 MHz |
12.3 dB/100 m |
25 |
30.5 |
14 |
154.9 |
|
| 30 MHz |
15.1 dB/100 m |
18.5 |
27.8 |
10.5 |
200 |
85 |
| 100 MHz |
27.8 dB/100 m |
15.6 |
20 |
5.0 |
|
85 |
| 600 MHz |
70.7 dB/100 m |
15.6 |
8.3 |
5.0 |
|
69.4 |
| 1000 MHz |
|
|
|
|
|
65 |
| UL Voltage Rating |
Breakdown Voltage |
| 300 V |
2kV ac/min |
Mechanical Characteristics
Trailing/Flexing Properties
| Motion |
Number of Cycles |
Radius |
Speed |
Acceleration |
Traverse Length |
| Trailing/Bending |
5,000,000 |
75 mm |
3 m/s |
10 m/s² |
5 m |
| Bulk Cable Weight: |
32 kg/km (22 lbs/1000ft) |
Standards and Compliance
| AWM Compliance: |
AWM 20549 |
| Data Category: |
SPE 1000 Mbps |
| ISO/IEC Compliance: |
IEC 61156-12, UL 758 |
| European Halogen Free Standards: |
IEC 60754-1 – Halogen Amount = 0.5% |
| European Directive Compliance: |
EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2) |
| APAC Compliance: |
China RoHS II (GB/T 26572-2011) |
Product Notes
| Notes: |
HF : According to EN 60684-2 : ?0.1% |
History
| Update and Revision: |
Revision Number: 0.23 Revision Date: 03-01-2024 |
Part Numbers
| Item # |
Color |
Putup Type |
Length |
EAN |
| 74034PU-C500 |
Blue, Light |
Reel |
500 m |
8719605219572 |
