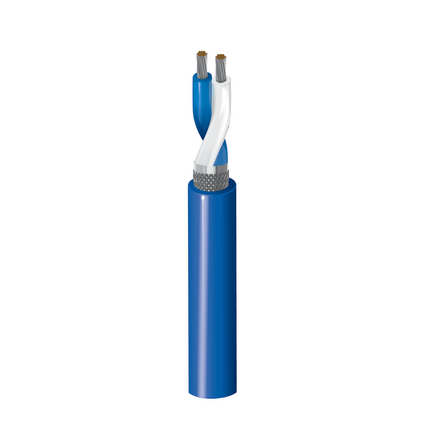

74032PU - DataTuff Ind SPE 40mGb 24AWG 19 STR SF/UTP PUR

74032PU – DataTuff Ind SPE 40mGb 24AWG 19 STR SF/UTP PUR

Call for Price

Compare
SKU: 74032PU Categories: , , ,

Description

Product Overview

Suitable Applications: Robotics, 1 single pair Ethernet up to 600 MHz accord. IEEE 802.3bp (1000BASE-T1)

Construction Details

Conductor
Size Stranding Material No. of Pairs
24 AWG 19×36 TC – Tinned Copper 1
Insulation
Material Nom. Insulation Diameter Color Code
PE – Polyethylene 1.9 mm (0.075 in) White & Blue
Outer Shield
Shield Type Material Coverage
Tape Bi-Laminate (Alum+Poly) 100%
Braid Tinned Copper (TC) 80%
Outer Jacket
Material Nom. Diameter
PUR – Polyurethane 5.5 mm (0.22 in)

Electrical Characteristics

Electricals
Max. Conductor DCR Max. Capacitance Unbalance Nom. Characteristic Impedance
94.2 Ohm/km at 20°C 160 pF/100m 100 Ohm
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. RL (Return Loss) [dB] Min. TCL [dB] Min. ELTCTL [dB] Max. Surface Transfer Impedance Min. Coupling Attenuation [dB] Nom. Characteristic Impedance [Ohm]
1 3.1 20 40 40 15
4 5.6 23 40 28 11.8
10 8.7 25 35 20 10
20 12.3 25 30.5 14 20
30 15.1 23.5 27.8 10.5 30 85
100 27.8 19 20 5 85
600 70.7 15.6 8.3 5 69.4
1000 65
100
Voltage
Voltage Rating
300 V

Mechanical Characteristics

Temperature
Operating
-40°C To +80°C

Standards and Compliance

Flammability / Reaction to Fire: FT2, IEC 60332-1-2
AWM Compliance: AWM 20549, AWM I A/B
Data Category: SPE 1000 Mbps
ISO/IEC Compliance: IEC 61156-12, UL 758
European Halogen Free Standards: IEC 60754-1 – Halogen Amount = HCl + HBr : According to IEC 60754-1 :?0.5 %, HF : According to EN 60684-2 : ?0.1 %

History

Update and Revision: Revision Number: 0.84 Revision Date: 03-01-2024

Part Numbers

Variants
Item # Color Putup Type Length EAN
74032PU 0101000 Black Reel 1,000 ft
74032PU-C500 Blue, Light Reel 500 m 8719605192288
74032PU 0061000 Blue, Light Reel 1,000 ft
74032PU 1NH1000 Teal Reel 1,000 ft
