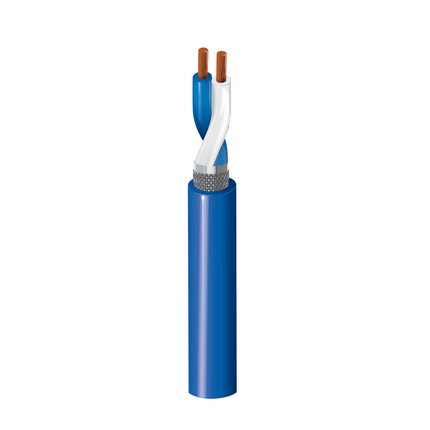

74030E - DataTuff Ind SPE 40mGb 26AWG SO SF/UTP PVC

74030E – DataTuff Ind SPE 40mGb 26AWG SO SF/UTP PVC

Call for Price

Compare
SKU: 74030E Categories: , , ,

Description

Product Overview

Suitable Applications: Tight space cabinet, machine building, 1 single pair Ethernet up to 600 MHz

Construction Details

Conductor
Size Stranding Material No. of Pairs
26 Solid BC – Bare Copper 1
Insulation
Material Nom. Insulation Diameter Color Code
PE – Polyethylene 1.35 mm (0.0531 in) White & Blue
Outer Shield
Shield Type Material Coverage
Tape Bi-Laminate (Alum+Poly) 100%
Braid Tinned Copper (TC) 80%
Outer Jacket
Material Nom. Diameter
PVC – Polyvinyl Chloride 4.10 mm (0.161 in)

Electrical Characteristics

Electricals
Max. Conductor DCR Max. Capacitance Unbalance Nom. Characteristic Impedance
145 Ohm/km at 20°C 160 pF/100m 100 Ohm
High Frequency
Frequency [MHz] Min. RL (Return Loss) [dB] Min. TCL [dB] Min. ELTCTL [dB] Max. Surface Transfer Impedance Min. Coupling Attenuation [dB] Nom. Characteristic Impedance [Ohm]
1 20 40 40 50
4 23 40 28 75.9
10 25 35 20 100
20 25 30.5 14 154.9
30 23.5 27.8 10.5 200 85
100 19 20 5 85
600 15.6 8.3 5 69.4
1000 65
100
Voltage
Voltage Rating
300 V

Mechanical Characteristics

Temperature
Operating
-20°C To +80°C

Standards and Compliance

Flammability / Reaction to Fire: FT2, IEC 60332-1-2
AWM Compliance: AWM 2095, AWM I A/B
Data Category: SPE 1000 Mbps
ISO/IEC Compliance: IEC 61156-12, UL 758

History

Update and Revision: Revision Number: 0.81 Revision Date: 02-15-2024

Part Numbers

Variants
Item # Color Putup Type Length EAN
74030E 0101000 Black Reel 1,000 ft
74030E-C500 Blue, Light Reel 500 m 8719605195814
74030E 0061000 Blue, Light Reel 1,000 ft
74030E-C1000 Blue, Light Reel 1,000 m 8719605191267
