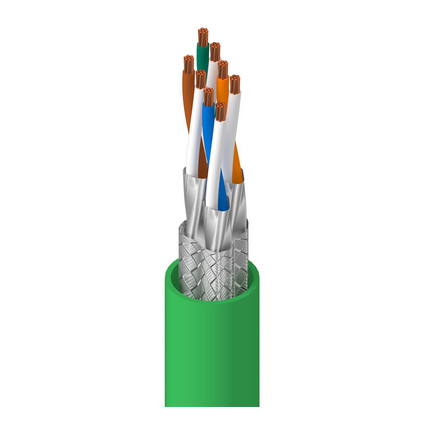

74011E - DataTuff® 6A, 4PR #23 Str BC, PO ins, S/FTP, PVC jkt, PROFINET Type B, AWM 21292

74011E – DataTuff® 6A, 4PR #23 Str BC, PO ins, S/FTP, PVC jkt, PROFINET Type B, AWM 21292

Call for Price

Compare
SKU: 74011E Categories: , , ,

Description

Product Overview

Suitable Applications: PROFINET Cat6A, harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc.

Construction Details

Conductor
Element Size Stranding Material No. of Pairs No. of Elements
Individual Shielded Pair 23 AWG Stranded BC – Bare Copper 4 8
Insulation
Element Material Nom. Insulation Diameter Color Code
Individual Shielded Pair PE – Polyethylene (Foam) 1.58 mm (0.0622 in) White & Blue, White & Orange, White & Green, White & Brown
Cable Core
Description
4 pairs twisted to cable core
Inner Shield
Element Shield Type Material Coverage
Individual Shielded Pair Tape Bi-Laminate (Alum+Poly) 100%
Table Notes: Aluminum outside
Outer Shield
Shield Type Material Coverage
Braid Tinned Copper (TC) 85%
Outer Jacket
Material Nom. Diameter
PVC – Polyvinyl Chloride 8.7 mm (0.34 in)
Overall Cable Diameter (Nominal): 8.7 mm (0.34 in)

Electrical Characteristics

Electricals
Max. Conductor DCR Max. Mutual Capacitance Max. Capacitance Unbalance Nom. Characteristic Impedance
71.9 Ohm/km 56 pF/m (17 pF/ft) 160 pF/100m 100 Ohm
Delay
Max. Delay Skew Nom. Velocity of Prop.
25 ns/100m 78%
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) [dB/100m] Min. NEXT [dB] Min. ACR [dB] Min. PSACR [dB] Min. ACRF (ELFEXT) [dB] Min. RL (Return Loss) [dB] Min. ELTCTL [dB]
1 2.1 75.3 73.2 70.2 68 20 35
4 3.8 66.3 62.5 59.5 56 23 23
10 5.9 60.3 54.4 51.4 48 25 15
16 7.5 57.2 49.8 46.8 43.9 25 10.9
31.2 10.5 52.9 42.4 39.4 38.1 23.6 5.1
62.5 15.0 48.4 33.4 30.4 32.1 21.5
100 19.1 45.3 26.6 23.2 28.0 20.1
125 21.5 43.8 22.3 19.3 26.1 19.4
200 27.6 40.8 13.2 10.2 22.0 18
250 31.1 39.3 8.3 5.3 20.0 17.3
300 34.3 38.1 3.9 0.9 18.5 17.3
500 45.3 34.8 14.0 17.3
Table Notes: Limits below 4MHz are for information only
Transfer Impedance Class: Grade 1
Screening Class: Type I
Table Notes: Coupling Attenuation
Voltage
Voltage Rating
30 V AC

Mechanical Characteristics

Temperature
Operating Storage
-40°C to +80°C -40°C to +80°C
Bend Radius
Stationary Min. Installation Min.
45 mm (1.8 in) 90 mm

Standards and Compliance

Environmental Suitability: Indoor – Euroclass Eca, Indoor, Sunlight Resistance – Black only, Oil Resistance
Flammability / Reaction to Fire: IEC 60332-1-2
CPR Compliance: CPR Euroclass: Eca
Data Category: Category 6A
ISO/IEC Compliance: ISO/IEC 11801-1
CENELEC Compliance: EN 50173-1, Segregation class according EN50174-2 = d
European Directive Compliance: EU CE Mark
UK Regulation Compliance: UKCA Mark

History

Update and Revision: Revision Number: 0.139 Revision Date: 02-21-2024

Part Numbers

Variants
Item # Color Putup Type Length EAN
74011E.00B50 Green Reel 50 m 8719605179814
74011E.00100 Green Reel 100 m 8719605130044
74011E.00500 Green Reel 500 m 8719605128607
