Description
Product Overview
| Suitable Applications: | Cat7, harsh environment, IIoT, factory or process automation, video, audio, data communication, etc. |

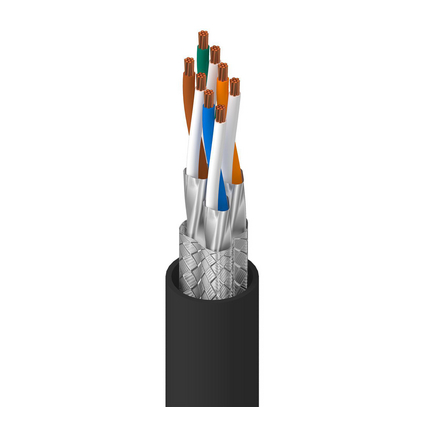

Construction Details
Conductor
| Size | Stranding | Material | No. of Pairs | No. of Elements |
|---|---|---|---|---|
| 26 AWG | Stranded | BC – Bare Copper | 4 | 8 |
Insulation
| Material | Nom. Insulation Diameter | Color Code |
|---|---|---|
| PE – Polyethylene (Foam) | 1.05 mm (0.0413 in) | White & Blue, White & Orange, White & Green, White & Brown |
Cable Core
| Description |
|---|
| 2 twisted insulated conductors, 4 pairs twisted together left hand lay |
Inner Shield
| Element | Shield Type | Material |
|---|---|---|
| Individual Shielded Pair | Tape | Bi-Laminate (Alum+Poly) |
Outer Shield
| Shield Type | Material |
|---|---|
| Braid | Tinned Copper (TC) |
Outer Jacket
| Material | Nom. Diameter |
|---|---|
| PVC – Polyvinyl Chloride | 6.8 mm (0.27 in) |
| Overall Cable Diameter (Nominal): | 6.8 mm (0.27 in) |
Electrical Characteristics
Electricals
| Max. Conductor DCR | Max. Mutual Capacitance | Max. Capacitance Unbalance | Nom. Characteristic Impedance |
|---|---|---|---|
| 145 Ohm/km | 56 pF/m (17 pF/ft) | 160 pF/100m | 100 Ohm |
Delay
| Max. Delay Skew | Nom. Velocity of Prop. |
|---|---|
| 40 ns/100m | 70% |
High Frequency
| Frequency [MHz] | Max. Insertion Loss (Attenuation) |
|---|---|
| 1 | 2.7 dB/100m |
| 4 | 5.5 dB/100m |
| 10 | 8.5 dB/100m |
| 16 | 10.8 dB/100m |
| 20 | 12.1 dB/100m |
| 31.25 | 15.2 dB/100m |
| 62.5 | 21.8 dB/100m |
| 100 | 27.8 dB/100m |
| 200 | 40.1 dB/100m |
| 300 | 50 dB/100m |
| 600 | 73.3 dB/100m |
Voltage
| UL Voltage Rating |
|---|
| 30 V RMS |
Mechanical Characteristics
Temperature
| Operating | Installation | Storage |
|---|---|---|
| -40°C to +80°C | -15°C To + 60°C | -40°C to +80°C |
Bend Radius
| Stationary Min. | Installation Min. |
|---|---|
| 30 mm (1.2 in) | 65 mm |
| Max. Pull Tension: | 80 N (18 lbf) |
Standards and Compliance
| Environmental Suitability: | Indoor – Euroclass Eca, Indoor, Sunlight Resistance – Black only, Oil Resistance |
| Flammability / Reaction to Fire: | IEC 60332-1-2 |
| CPR Compliance: | CPR Euroclass: Eca |
| AWM Compliance: | AWM 20121 |
| Data Category: | Category 7 |
| TIA/EIA Compliance: | ANSI/TIA 568.2-D |
| ISO/IEC Compliance: | ISO/IEC 11801-1 |
| CENELEC Compliance: | EN 50173-1 |
| European Directive Compliance: | EU CE Mark |
| UK Regulation Compliance: | UKCA Mark |
History
| Update and Revision: | Revision Number: 0.194 Revision Date: 01-10-2024 |
Part Numbers
Variants
| Item # | Color | Putup Type | Length | EAN |
|---|---|---|---|---|
| 74005E.01500 | Black | Reel | 500 m | 8719605013255 |
