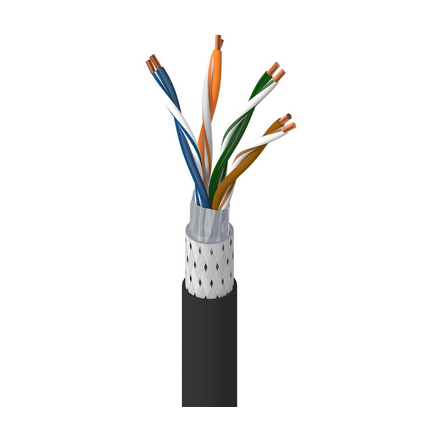

74001NH - DataTuff® 5E, 4PR #24 Sol BC, PO ins, SF/UTP, LSNH Jkt, AWM 21286

74001NH – DataTuff® 5E, 4PR #24 Sol BC, PO ins, SF/UTP, LSNH Jkt, AWM 21286

Call for Price

Compare
SKU: 74001NH Categories: , , ,

Description

Product Overview

Suitable Applications: Cat5e, harsh environment, IIoT, factory or process automation, video, audio, data communication, etc.

Construction Details

Conductor
Size Stranding Material No. of Pairs No. of Elements
24 AWG Solid BC – Bare Copper 4 8
Insulation
Material Nom. Insulation Diameter Color Code
PE – Polyethylene 1.1 mm (0.043 in) White/Blue & Blue, White/Orange & Orange, White/Green & Green, White/Brown & Brown
Cable Core
Description
4 pairs twisted to cable core covered with a polyester foil
Outer Shield
Shield Type Material Coverage
Tape Bi-Laminate (Alum+Poly)
Braid Tinned Copper (TC) 80%
Table Notes: Aluminum outside
Outer Jacket
Material Nom. Diameter
LSZH – Low Smoke Zero Halogen (Flame Retardant) 6.8 mm (0.27 in)
Table Notes: Black similar RAL 9005 , Green similar RAL 6024 , Blue similar RAL 5015 , Light-Blue similar RAL 5012 , Pink similar RAL 4010 , Ultramarine blue similar RAL5002
Overall Cable Diameter (Nominal): 6.8 mm (0.27 in)

Electrical Characteristics

Electricals
Max. Conductor DCR Max. Mutual Capacitance Max. Capacitance Unbalance Nom. Characteristic Impedance
93.8 Ohm/km 56 pF/m (17 pF/ft) 160 pF/100m 100 Ohm
Delay
Max. Delay Skew Nom. Velocity of Prop.
40 ns/100m 60%
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) [dB/100m] Min. NEXT [dB] Min. PSNEXT [dB] Min. ACR [dB] Min. PSACR [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB]
1 2.1 65.3 62.3 63.2 60.2 64 61 20
4 4.0 56.3 53.3 52.32 49.3 52 49 23
10 6.3 50.3 47.3 44 41 44 41 25
16 8.0 47.2 44.2 39.2 36.2 39.9 36.9 25
20 9.0 45.8 42.8 36.8 33.8 38 35 25
31.25 11.4 42.9 39.9 31.5 28.5 34.1 31.5 23.6
62.5 16.5 38.4 35.4 21.9 18.9 28.1 25.1 21.5
100 21.3 35.3 32.3 14 11 24 21 20.1
Voltage
Voltage Rating
450 V DC and 300 V AC

Mechanical Characteristics

Temperature
Operating Installation Storage
-40°C to +80°C -5°C To +50°C -40°C To +80°C
Bend Radius
Stationary Min. Installation Min.
35 mm (1.4 in) 70 mm
Max. Pull Tension: 80 N (18 lbf)

Standards and Compliance

Environmental Suitability: Indoor – Euroclass Eca, Sunlight Resistance, Oil Resistance
Flammability / Reaction to Fire: IEC 60332-1-2
CPR Compliance: CPR Euroclass: Eca
IEEE Compliance: PoE: IEEE 802.3bt Type 1, Type 2, Type 3
Data Category: Category 5e
TIA/EIA Compliance: ANSI/TIA 568.2-D
ISO/IEC Compliance: ISO/IEC 11801-1
CENELEC Compliance: EN 50173-1
European Halogen Free Standards: IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 – Halogen Amount = Zero, IEC 60754-2 – Halogen Acid Gas Amount – Max. Conductivity = 2.5 µS/mm, IEC 60754-2 – Halogen Acid Gas Amount – Min. pH = 4.3
European Directive Compliance: EU CE Mark
UK Regulation Compliance: UKCA Mark

History

Update and Revision: Revision Number: 0.258 Revision Date: 01-10-2024

Part Numbers

Variants
Item # Color Putup Type Length EAN
74001NH.01B100 Black Flat Box 100 m 8719605012999
74001NH.01305 Black Reel 305 m 8719605012975
74001NH.01500 Black Reel 500 m 8719605012982
74001NH.04500 Blue Reel 500 m 8719605173737
74001NH.02500 Green Reel 500 m 8719605169228
74001NH.06B100 Light Blue Flat Box 100 m 8719605181688
74001NH.06500 Light Blue Reel 500 m 8719605175649
74001NH.07500 Pink Reel 500 m 8719605175656
