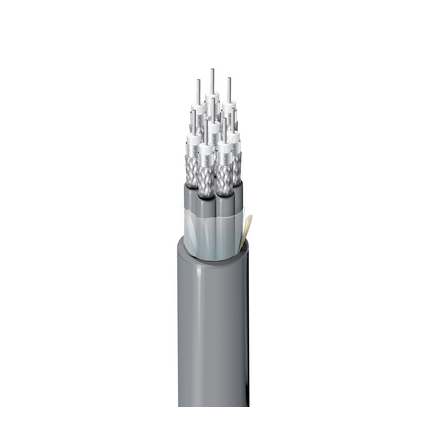

735A8 - DS3/DS4 Central Office Coax, 8 x Sub-miniature RG-59, 26 AWG Solid SC, Foil + 95% TC Braids, PVC Inner & Outer Jkts, CMR

735A8 – DS3/DS4 Central Office Coax, 8 x Sub-miniature RG-59, 26 AWG Solid SC, Foil + 95% TC Braids, PVC Inner & Outer Jkts, CMR

Call for Price

Compare
SKU: 735A8 Categories: , , ,

Description

Product Overview

Suitable Applications: Central office wiring, DS3/DS4 interconnect, 734/735 telecommunications systems, switchboard communications

Construction Details

RG Type: Sub-miniature 59
Conductor
Size Stranding Nom. Diameter Material
26 AWG Solid 0.016 in SC – Silvered Copper
Insulation
Material Nom. Insulation Diameter Color Code
PE – Polyethylene (Foam) 0.077 in (2.0 mm) White
Inner Shield
Layer Shield Type Material Material Trade Name Coverage
1 Tape Bi-Laminate (Alum+Poly) Beldfoil® 100%
2 Braid Tinned Copper (TC) 95%
Inner Jacket
Material Nom. Diameter
PVC – Polyvinyl Chloride 0.129 in (3.28 mm)
Table Notes: Each jacket gray and numbered
Outer Jacket
Material Nom. Diameter
PVC – Polyvinyl Chloride 0.447 in (11.4 mm)
Overall Cable Diameter (Nominal): 0.447 in (11.4 mm)

Electrical Characteristics

Return Loss (RL)
Frequency Min. Return Loss
15 – 95 MHz 30 dB
Attenuation
Frequency Max. Attenuation
1 MHz 0.6 dB/100ft
1.024 MHz 0.61 dB/100ft
4.224 MHz 1.1 dB/100ft
5 MHz 1.2 dB/100ft
10 MHz 1.7 dB/100ft
17.184 MHz 2.2 dB/100ft
22.368 MHz 2.5 dB/100ft
25.92 MHz 2.7 dB/100ft
44.736 MHz 3.6 dB/100ft
50 MHz 3.8 dB/100ft
69.632 MHz 4.5 dB/100ft
77.76 MHz 4.8 dB/100ft
100 MHz 5.5 dB/100ft
137.088 MHz 6.4 dB/100ft
200 MHz 7.8 dB/100ft
Electricals
Nom. Conductor DCR Nom. Inner Shield DCR Nom. Capacitance
Cond-to-Shield		 Nom. Characteristic Impedance Nom. Velocity of Prop.
41 Ohm/1000ft 5.3 Ohm/1000ft (17 Ohm/km) 17.7 pF/ft (58.1 pF/m) 75 Ohm 76%
Voltage
UL Voltage Rating
300 V (CMR, CMG)

Mechanical Characteristics

Temperature
UL Temperature Operating
75°C -40°C to +75°C
Bend Radius
Installation Min.
4.5 in (110 mm)
Max. Pull Tension: 200 lbs (91 kg)
Bulk Cable Weight: 118 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor – Riser, Indoor
Sustainability: CA Prop 65
Flammability / Reaction to Fire: UL1666 Vertical Shaft
CPR Compliance: CPR Euroclass: Eca
NEC / UL Compliance: CMR
CEC / C(UL) Compliance: CMG
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance: UKCA Mark
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.462 Revision Date: 04-13-2023

Part Numbers

Variants
Item # Color Putup Type Length UPC Footnote
735A8 008500 Gray Reel 500 ft 612825184850 C
735A8 0081000 Gray Reel 1,000 ft 612825184843 C
