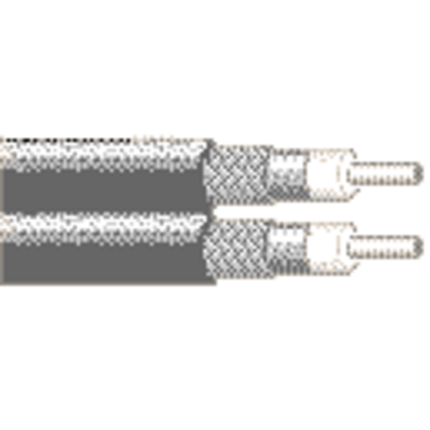

735A2 - DS-3 and DS-4, 735* Series, #26-2 SPC Coax, CMR/CMG

735A2 – DS-3 and DS-4, 735* Series, #26-2 SPC Coax, CMR/CMG

Call for Price

Compare
SKU: 735A2 Categories: , , ,

Description

Physical Characteristics (Overall)

Conductor
AWG Stranding Material Nominal Diameter No. of Coax
26 Solid SCCS – Silvered Copper Covered Steel 0.016 in 2
Conductor Count: 2
Insulation
Material Nominal Diameter
PE – Polyethylene (Foam) 0.077 in
Outer Shield
Type Layer Material Material Trade Name Coverage [%]
Tape 1 Bi-Laminate (Alum+Poly) Beldfoil® 100%
Braid 2 Tinned Copper (TC) 95%
Outer Jacket
Material Nominal Diameter
PVC – Polyvinyl Chloride 0.129 in x 0.258 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR Nominal Conductor DCR Conductor Resistance Nominal Outer Shield DCR Outer Conductor DCR
41 Ohm/1000ft 41 Ohm/1000ft 5.3 Ohm/1000ft 5.3 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Shield
17.7 pF/ft
Inductance
Nominal Inductance
0.19 µH/ft
Impedance
Nominal Characteristic Impedance
75 Ohm
Return Loss (RL)
Frequency [MHz] Minimum Return (RL)
15-95 MHz 30 dB
Delay
Nominal Delay Nominal Velocity of Propagation (VP) [%]
1.34 ns/ft 76%
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation)
1 MHz 0.6 dB/100ft
1.024 MHz 0.61 dB/100ft
4.224 MHz 1.1 dB/100ft
5 MHz 1.2 dB/100ft
10 MHz 1.7 dB/100ft
17.184 MHz 2.2 dB/100ft
22.368 MHz 2.5 dB/100ft
25.92 MHz 2.7 dB/100ft
44.736 MHz 3.6 dB/100ft
50 MHz 3.8 dB/100ft
69.632 MHz 4.5 dB/100ft
77.76 MHz 4.8 dB/100ft
100 MHz 5.5 dB/100ft
137.088 MHz 6.4 dB/100ft
200 MHz 7.8 dB/100ft
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

Operating Temperature Range: -40°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 23 lbs/1000ft
Max. Pull Tension: 50 lbs
Min Bend Radius (Overall): 2.5 in
Min. Bend Radius/Minor Axis: 1.25 in

Standards

NEC/(UL) Compliance: CMR
CEC/C(UL) Compliance: CMG
RG Type: Mini 59

Applicable Environmental and Other Programs

Environmental Space: Indoor – Riser
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2011/65/EU (RoHS 2): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU (RoHS 2 amendment): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
MII Order #39 (China RoHS): Yes

Suitability

Suitability – Indoor: Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: UL1666 Vertical Shaft
CSA Flammability: FT4
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No

Related Part Numbers

Variants
Item # Color Put-Up Type Length UPC
735A2 008500 Gray Reel 500 ft 612825184782
735A2 0081000 Gray Reel 1,000 ft 612825184775
Footnote: C – CRATE REEL PUT-UP.

Product Notes

Notes: Each Coax Nominal Diameter: 0.129 in. Overall Nominal Diameter: 0.129 in x 0.258 in. Siamese version features zip cord design with printing on one leg.

History

Update and Revision: Revision Number: 0.342 Revision Date: 11-09-2022
