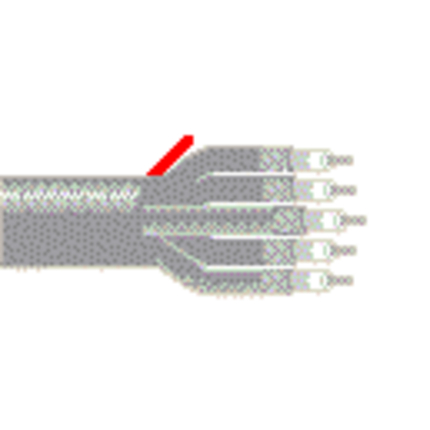

734C6 – DS3/DS4 Central Office Coax, 6 x RG-59, 20 AWG Solid SC, Foil + 85% TC Braids, PVC Inner & Outer Jkts, CMR

Call for Price

parts-139

(SKU: 103-191021001) – MicroFlow drive wheel A 2.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-138

(SKU: 103-191021002) – MicroFlow drive wheel B 2.5 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-139

(SKU: 103-191021003) – MicroFlow drive wheel C 3.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-136

(SKU: 103-191021004) – MicroFlow drive wheel D 6.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-119

(SKU: 103-171114001) – MicroFlow sensor arm set 1.5 mm – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$321.10

parts-118

(SKU: 103-171114002) – MicroFlow sensor arm set 2.0 mm – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$321.10

Description

Product Overview

Suitable Applications: Central office wiring, DS3/DS4 interconnect, 734/735 telecommunications systems, switchboard communications

Construction Details

Conductor
No. of Elements Size Stranding Nom. Diameter Material
6 20 AWG Solid 0.032 in SC – Silvered Copper
Insulation
Material Nom. Insulation Diameter Color Code
PE – Polyethylene (Foam) 0.148 in (3.76 mm) White
Table Notes: Gas Injected
Inner Shield
Layer Shield Type Material Material Trade Name Coverage
1 Tape Tri-Laminate (Alum+Poly+Alum) Duofoil® 100%
2 Braid Tinned Copper (TC) 85%
Table Notes: Tape bonded to dielectric
Inner Jacket
Material Nom. Diameter
PVC – Polyvinyl Chloride 0.235 in (5.97 mm)
Outer Shield
Material
No Shield
Outer Jacket
Material Nom. Diameter
PVC – Polyvinyl Chloride 0.777 in (19.7 mm)
Overall Cable Diameter (Nominal): 0.777 in (19.7 mm)

Electrical Characteristics

Return Loss (RL)
Frequency Min. Return Loss
5-150 MHz 32 dB
Attenuation
Frequency Max. Attenuation
1 MHz 0.28 dB/100ft
5 MHz 0.59 dB/100ft
10 MHz 0.8 dB/100ft
22.5 MHz 1.18 dB/100ft
50 MHz 1.82 dB/100ft
100 MHz 2.6 dB/100ft
150 MHz 3.22 dB/100ft
Electricals
Nom. Conductor DCR Nom. Inner Shield DCR Nom. Capacitance
Cond-to-Shield		 Nom. Characteristic Impedance Nom. Velocity of Prop.
10 Ohm/1000ft (33 Ohm/km) 2.4 Ohm/1000ft (7.9 Ohm/km) 16.8 pF/ft (55.1 pF/m) 75 Ohm 80%
Voltage
UL Voltage Rating
300 V RMS

Mechanical Characteristics

Temperature
UL Temperature Operating
75°C -40°C To +75°C
Bend Radius
Stationary Min. Installation Min.
7.75 in (197 mm) 7.75 in (197 mm)
Max. Pull Tension: 362 lbs (164 kg)
Bulk Cable Weight: 235 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor
Flammability / Reaction to Fire: UL1666 Vertical Shaft, FT4
NEC / UL Compliance: Article 800, CMR
CEC / C(UL) Compliance: CMG
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.180 Revision Date: 05-01-2023

Part Numbers

Variants
Item # Color Putup Type Length UPC Footnote
734C6 0081000 Gray Reel 1,000 ft 612825184331 C
734C6 0082000 Gray Reel 2,000 ft 612825184348 C
734C6 0083000 Gray Reel 3,000 ft 612825184362
