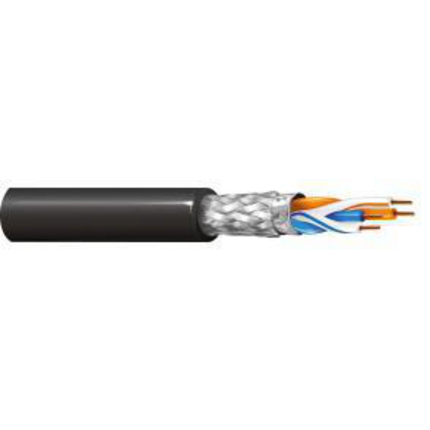

72001PU - DataTuff® 5E, 2PR #24 Sol BC, PO ins, SF/UTP, PUR HF jkt, AWM 20549

72001PU – DataTuff® 5E, 2PR #24 Sol BC, PO ins, SF/UTP, PUR HF jkt, AWM 20549

Call for Price

Compare
SKU: 72001PU Categories: , , ,

Description

Product Overview

Suitable Applications: Cat5e, harsh environment, IIoT, factory or process automation, video, audio, data communication, etc.

Construction Details

Conductor
Size Stranding Material No. of Pairs No. of Elements
24 AWG Solid BC – Bare Copper 2 4
Insulation
Material Nom. Insulation Diameter Color Code
PE – Polyethylene 1.1 mm (0.043 in) White/Blue & Blue, White/Orange & Orange
Cable Core
Description
2 pairs and 2 fillers twisted to cable core covered with a polyester foil
Outer Shield
Shield Type Material Coverage
Tape Bi-Laminate (Alum+Poly)
Braid Tinned Copper (TC) 80%
Table Notes: Aluminum outside
Outer Jacket
Material Nom. Diameter
PUR – Polyurethane (Halogen Free) 6 mm (0.24 in)
Table Notes: Flame Retardant Sheath
Overall Cable Diameter (Nominal): 6 mm (0.24 in)

Electrical Characteristics

Electricals
Max. Conductor DCR Max. Mutual Capacitance Max. Capacitance Unbalance Nom. Characteristic Impedance
93.8 Ohm/km 56 pF/m (17 pF/ft) 160 pF/100m 100 Ohm
Delay
Max. Delay Skew Nom. Velocity of Prop.
40 ns/100m 60%
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. ACRF (ELFEXT) [dB] Min. RL (Return Loss) [dB]
0.772 67 19.4
1 3.2 dB/100m 65.3 63.8 20
4 6 dB/100m 56.3 51.8 23
10 9.5 dB/100m 50.3 43.8 25
16 12.1 dB/100m 47.2 39.7 25
20 13.6 dB/100m 45.8 37.8 25
25 15.3 dB/100m 44.3 35.8 24.3
31.25 17.1 dB/100m 42.9 33.9 23.6
62.5 24.8 dB/100m 38.3 27.9 21.5
100 32 dB/100m 35.3 23.8 20.1
Voltage
Voltage Rating
450 V DC and 300 V AC

Mechanical Characteristics

Temperature
Operating Installation Storage
-40°C to +80°C -5°C To +50°C -40°C To +80°C
Bend Radius
Stationary Min. Installation Min.
30 mm (1.2 in) 60 mm
Max. Pull Tension: 40 N (9.0 lbf)

Standards and Compliance

Environmental Suitability: Indoor, Indoor, Sunlight Resistance, Oil Resistance
AWM Compliance: AWM 20549
Data Category: Category 5e
TIA/EIA Compliance: ANSI/TIA 568.2-D
ISO/IEC Compliance: ISO/IEC 11801-1
CENELEC Compliance: EN 50173-1
European Halogen Free Standards: IEC 60754-1 – Halogen Amount = Zero
European Directive Compliance: EU CE Mark

History

Update and Revision: Revision Number: 0.248 Revision Date: 01-10-2024

Part Numbers

Variants
Item # Color Putup Type Length EAN
72001PU.01305 Black Reel 305 m 8719605012784
72001PU.01500 Black Reel 500 m 8719605012791
