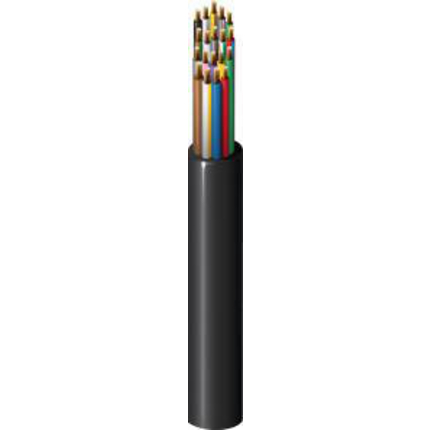

Product Overview
| Suitable Applications: |
As a flexible, flame retardant and halogen-free control line in the industrial Mechanical- and Plant engineering, for high requirements, particularly for the employment in cable carriers (Drag chains) and moved machine parts. |
Physical Characteristics (Overall)
| Element |
Stranding |
Material |
Cross Section |
Nominal Diameter |
No. of Conductors |
| Wire 1 t/m 8 |
Stranded |
BC – Bare Copper |
|
1.45 mm |
11 |
| Wire 9 t/m 11 |
|
BC – Bare Copper |
1 mm² |
1.95 mm |
3 |
| Table Notes: |
Extra fine-wired |
| Material |
| PP – Polypropylene |
| Number |
Color |
| Wire 1 |
White |
| Wire 2 |
Green |
| Wire 3 |
Yellow |
| Wire 4 |
Gray |
| Wire 5 |
Gray & Pink |
| Wire 6 |
Red & Blue |
| Wire 7 |
White & Green |
| Wire 8 |
Brown & Green |
| Wire 9 |
Blue |
| Wire 10 |
Brown |
| Wire 11 |
Green & Yellow |
| Material |
Nominal Diameter |
Diameter +/- Tolerance |
Labs Free |
Oil Resistant |
| PUR – Polyurethane |
9.3 mm |
0.2 mm |
Yes |
Good |
Electrical Characteristics
| Min Insulation Resistance: |
1000 MOhm*km |
| Voltage Rating [V] |
Voltage Test Dielectric |
| 300 V |
2.0 kV DC |
Temperature Range
| Operating Temperature Range: |
-50°C To +80°C |
| Operating Temp Range (Flexible Install): |
-25°C To +80°C |
| Operating Temp Range (Drag Chain Op): |
-25°C To +60°C |
Mechanical Characteristics
| Microbes and Hydrolyse Resistance: |
Good |
| Min Bend Radius (W/o Pulling Strength): |
93 mm |
| Min No. of Drag Chain Cycles: |
2 Mio. |
| Drag Chain Parameters: |
a = 5 m/s², horizontal 5 m, vertical 2 m,v = max. 200m/min.) |
Standards
| UL AWM Style Compliance: |
AWM 20549 |
Applicable Environmental and Other Programs
| Environmental Space: |
Indoor/Outdoor |
Flammability, LS0H, Toxicity Testing
| IEC Flammability: |
IEC 60332-2-2 |
| IEC 60754-1 – Halogen Amount: |
Zero |
Related Part Numbers
| Item # |
Color |
Put-Up Type |
Length |
EAN |
| 70267PU.00100 |
Black |
Reel |
100 m |
8719605012654 |
| 70267PU.00500 |
Black |
Reel |
500 m |
8719605012661 |
History
| Update and Revision: |
Revision Number: 0.137 Revision Date: 12-20-2022 |
