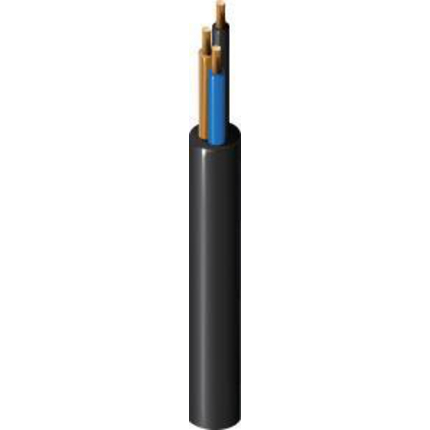

70259PU – Sensor & Actuator, 5-Cond, Cu Section 0.50 mm², PUR

Call for Price

parts-139

(SKU: 103-191021001) – MicroFlow drive wheel A 2.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-138

(SKU: 103-191021002) – MicroFlow drive wheel B 2.5 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-139

(SKU: 103-191021003) – MicroFlow drive wheel C 3.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-136

(SKU: 103-191021004) – MicroFlow drive wheel D 6.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-119

(SKU: 103-171114001) – MicroFlow sensor arm set 1.5 mm – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$321.10

parts-118

(SKU: 103-171114002) – MicroFlow sensor arm set 2.0 mm – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$321.10

Description

Product Overview

Suitable Applications: As a flexible, flame retardant and halogen-free control line in the industrial Mechanical- and Plant engineering, for high requirements, particularly for the employment in cable carriers (Drag chains) and moved machine parts.

Physical Characteristics (Overall)

Conductor
AWG Stranding Material No. of Conductors
20 16×32 BC – Bare Copper 5
Table Notes: Extra fine-wired
Conductor Count: 5
Insulation
Material Nominal Diameter
PP – Polypropylene 1.5 mm
Color Chart
Number Color
Wire 1 Brown
Wire 2 White
Wire 3 Blue
Wire 4 Black
Wire 5 Green & Yellow
Outer Jacket
Material Nominal Diameter Diameter +/- Tolerance Labs Free Oil Resistant
PUR – Polyurethane 5.4 mm 0.2 mm Yes Good

Electrical Characteristics

Min Insulation Resistance: 1000 MOhm*km
Voltage
Voltage Rating [V] Voltage Test Dielectric
300 V 2.0 kV DC

Temperature Range

Operating Temperature Range: -50°C To +80°C
Operating Temp Range (Flexible Install): -25°C To +80°C
Operating Temp Range (Drag Chain Op): -25°C To +60°C

Mechanical Characteristics

Microbes and Hydrolyse Resistance: Good
Min Bend Radius (W/o Pulling Strength): 54 mm
Min No. of Drag Chain Cycles: 2 Mio.
Drag Chain Parameters: a = 5 m/s², horizontal 5 m, vertical 2 m,v = max. 200m/min.)

Standards

UL AWM Style Compliance: AWM 20549

Applicable Environmental and Other Programs

Environmental Space: Indoor/Outdoor

Flammability, LS0H, Toxicity Testing

CSA Flammability: FT4
IEC Flammability: IEC 60332-2-2
IEC 60754-1 – Halogen Amount: Zero

Related Part Numbers

Variants
Item # Color Put-Up Type Length EAN
70259PU.00C100 Black Coil 100 m 8719605012500
70259PU.00500 Black Reel 500 m 8719605012494

History

Update and Revision: Revision Number: 0.128 Revision Date: 12-20-2022
