Product Overview
| Suitable Applications: |
8 fold star-quad microphone cable |
Physical Characteristics (Overall)
| AWG |
Stranding |
Material |
Construction n x D |
| 26 |
Stranded |
BC – Bare Copper |
19×0.10 mm |
| Type |
Material |
Nominal Diameter |
Diameter +/- Tolerance |
| Insulation |
PE – Polyethylene |
1.15 mm |
0.05 mm |
| Number |
Color |
| Quad 1 |
White & Blue & White/Blue & Blue/White |
| Table Notes: |
With ringmarking |
| Number |
Color |
| Quad 1 |
1 |
| Quad 2 |
2 |
| Quad 3 |
3 |
| Quad 4 |
4 |
| Quad 5 |
5 |
| Quad 6 |
6 |
| Quad 7 |
7 |
| Quad 8 |
8 |
| Type |
Material |
Coverage [%] |
Drainwire Material |
Drainwire AWG |
Drainwire Construction n x D |
Drainwire Position |
| Tape |
Bi-Laminate (Alum+Poly) |
100% |
Stranded tinned copper |
26 |
7×0.16 mm |
Under shielding foil |
| Table Notes: |
Aluminum inside |
| Material |
Color |
Nominal Diameter |
| PVC – Polyvinyl Chloride |
Gray |
3.70 mm |
| Table Notes: |
Elements are numbered 1-8 for identification |
| Material |
Nominal Diameter |
Diameter +/- Tolerance |
Nominal Wall Thickness |
| PVC – Polyvinyl Chloride |
16.70 mm |
0.50 mm |
1.50 mm |

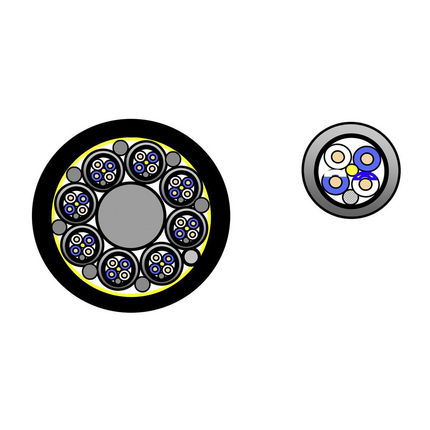

Construction and Dimensions
| Description |
| 1 center filler + 8 quads + 7 fillers + 1 stranded tinned copper drainwire (16AWG) (26×0.254 mm) covered with a non-woven foil |
Electrical Characteristics
| Nominal Conductor DCR |
| 110.0 Ohm/km |
| Nom. Capacitance Conductor to Conductor |
Nom. Capacitance Conductor to Shield |
| 164 pF/m |
222 pF/m |
Temperature Range
| Other Temp Range: |
-30 to +70 °C |
Mechanical Characteristics
| Min. Bend Radius During Installation: |
167 mm |
| Min. Bend Radius During Operation: |
250.5 mm |
Applicable Environmental and Other Programs
| Environmental Space: |
Indoor |
Related Part Numbers
| Item # |
Color |
Put-Up Type |
Length |
EAN |
| 70066.00500 |
Black |
Reel |
500 m |
8719605010599 |
History
| Update and Revision: |
Revision Number: 0.160 Revision Date: 12-20-2022 |
