Product Overview
| Suitable Applications: |
Speaker cable for use in indoor or outdoor applications |
Physical Characteristics (Overall)
| Stranding |
Material |
Cross Section |
Construction n x D |
| Stranded |
BC-OFHC – Oxygen-Free Bare Copper (High Conductivity) |
4.00 mm² |
56×0.30 mm |
| Type |
Material |
Nominal Diameter |
Diameter +/- Tolerance |
| Insulation |
LSZH – Low Smoke Zero Halogen (Flame Retardant) |
3.30 mm |
0.10 mm |
| Number |
Color |
| Wire 1 |
Black |
| Wire 2 |
Red |
| Material |
Nominal Diameter |
Diameter +/- Tolerance |
| LSZH – Low Smoke Zero Halogen (Flame Retardant) |
8.60 mm |
0.25 mm |
| Table Notes: |
Matte Finish |

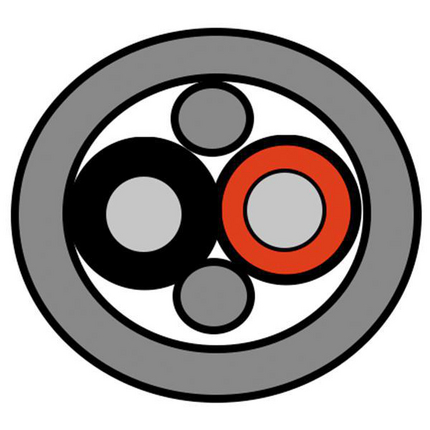

Construction and Dimensions
| Description |
| 2 fillers + 2 wires twisted |
Electrical Characteristics
| Max. Conductor DCR |
| 4.5 Ohm/km |
| Min Insulation Resistance: |
200 MOhm*km |
Temperature Range
| Storage Temperature Range: |
-30°C to +70°C |
| Operating Temp Range (Flexible Install): |
-5°C To +60°C |
| Operating Temp Range (Fixed Install): |
-30°C To +70°C |
Mechanical Characteristics
Standards
| CPR Euroclass: |
Dca-s2,d2,a1 |
Applicable Environmental and Other Programs
| Environmental Space: |
Indoor – Euroclass Dca |
Flammability, LS0H, Toxicity Testing
| IEC Flammability: |
IEC 60332-1-2 |
| IEC 60754-1 – Halogen Amount: |
Zero |
| IEC 60754-2 – Halogen Acid Gas Amount – Max. Conductivity: |
2.5 µS/mm |
| IEC 60754-2 – Halogen Acid Gas Amount – Min. pH: |
4.3 |
Related Part Numbers
| Item # |
Color |
Put-Up Type |
Length |
EAN |
| 70048.00100 |
Black |
Reel |
100 m |
8719605142436 |
| 70048.00500 |
Black |
Reel |
500 m |
8719605009937 |
History
| Update and Revision: |
Revision Number: 0.182 Revision Date: 02-15-2024 |
