70041 - AUDIO ANALOG 2 PAIR, 26AWG, LSZH

70041 – AUDIO ANALOG 2 PAIR, 26AWG, LSZH

Call for Price

Compare
SKU: 70041 Categories: , , , ,

Description

Product Overview

Suitable Applications: Audio snake cable used in professional studios; For the transmission of analogue signals

Physical Characteristics (Overall)

Conductor
AWG Stranding Material Cross Section Construction n x D
26 7×34 BC-OFHC – Oxygen-Free Bare Copper (High Conductivity) 0.14 mm² 7×0.16 mm
Conductor Count: 4
Total Number of Pairs: 2
Insulation
Type Material Nominal Diameter Diameter +/- Tolerance
Insulation PE – Polyethylene 1.00 mm 0.03 mm
Color Chart
Number Color
Pair 1 t/m 2 White & Red
Inner Shield
Type Material Material Trade Name Coverage [%] Drainwire Material Drainwire AWG Drainwire Construction n x D
Tape Bi-Laminate (Alum+Poly) Beldfoil® 100% Stranded tinned copper 26 7×0.16 mm
Table Notes: Aluminum inside
Inner Jacket
Material Nominal Diameter Diameter +/- Tolerance
LSZH – Low Smoke Zero Halogen (Flame Retardant) 2.80 mm 0.10 mm
Table Notes: Elements are numbered for identification
Outer Shield
Type Material Coverage [%] Drainwire Material Drainwire AWG Drainwire Construction n x D
Tape Bi-Laminate (Alum+Poly) 100% TC – Tinned Copper 26 7×0.16 mm
Outer Jacket
Material Nominal Diameter Nominal Wall Thickness
LSZH – Low Smoke Zero Halogen (Flame Retardant) 8.00 mm 1.10 mm

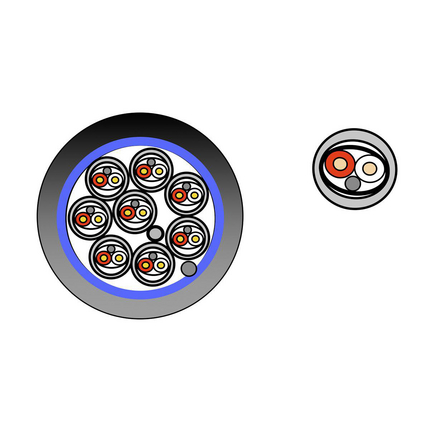

Construction and Dimensions

Cabling
Description Filler
2 fillers + 2 pairs Polypropylene (2x)

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
134.0 Ohm/km
Capacitance
Nom. Capacitance Conductor to Conductor
90 pF/m
Delay
Nominal Velocity of Propagation (VP) [%]
66%

Temperature Range

Other Temp Range: -30 to +70 °C

Mechanical Characteristics

Min. Bend Radius During Installation: 80 mm
Min Setting Radius: 40 mm

Standards

CPR Euroclass: Eca

Applicable Environmental and Other Programs

Environmental Space: Indoor

Flammability, LS0H, Toxicity Testing

IEC Flammability: IEC 60332-1-2
LOI of Jacket: Min. 34 %
IEC 60754-1 – Halogen Amount: Zero
IEC 60754-2 – Halogen Acid Gas Amount – Max. Conductivity: 2.5 µS/mm
IEC 60754-2 – Halogen Acid Gas Amount – Min. pH: 4.3

Related Part Numbers

Variants
Item # Color Put-Up Type Length EAN
70041.00500 Black Reel 500 m 8719605009807

History

Update and Revision: Revision Number: 0.176 Revision Date: 12-22-2023
