Product Overview
| Suitable Applications: |
Microphone cable |
Physical Characteristics (Overall)
| AWG |
Stranding |
Material |
Construction n x D |
| 24 |
32×38 |
BC-OFHC – Oxygen-Free Bare Copper (High Conductivity) |
32×0.10 mm |
| Type |
Material |
Nominal Diameter |
Diameter +/- Tolerance |
| Insulation |
PE – Polyethylene |
1.45 mm |
0.05 mm |
| Number |
Color |
| Wire 1 |
Red |
| Wire 2 |
Blue |
| Color |
| Black |
| Red (like RAL 3001) |
| Yellow (like RAL 1003) |
| Green (like RAL 6029) |
| Blue (like RAL 5005) |
| Gray (like RAL 7000) |
| Table Notes: |
Possible color of outerjacket |
| Type |
Material |
Min. Coverage [%] |
| Spiral Serve / Screen |
Bare Copper (BC) |
90% |
| Material |
Nominal Diameter |
Diameter +/- Tolerance |
| PVC – Polyvinyl Chloride |
6.10 mm |
0.20 mm |
| Table Notes: |
Flexible Matte Finish Sheath |

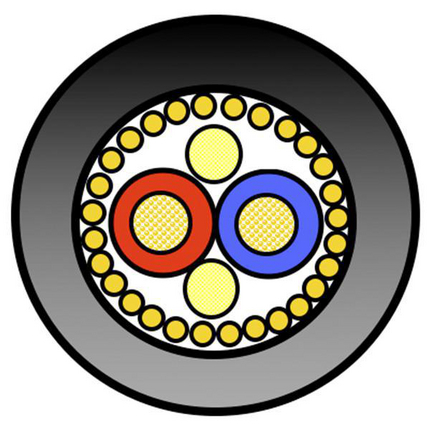

Construction and Dimensions
| Description |
Filler |
| 2 fillers + 2 wires twisted |
Cotton yarn (2x) |
Electrical Characteristics
| Max. Conductor DCR |
| 78 Ohm/km |
| Nom. Capacitance Conductor to Conductor |
Nom. Capacitance Conductor to Shield |
| 60 pF/m |
110 pF/m |
Temperature Range
| Storage Temperature Range: |
-15°C To +60°C |
| Operating Temp Range (Fixed Install): |
-5°C To +60°C |
Mechanical Characteristics
| Min. Bend Radius During Installation: |
61 mm |
Applicable Environmental and Other Programs
| Environmental Space: |
Indoor |
Related Part Numbers
| Item # |
Color |
Put-Up Type |
Length |
EAN |
| 70040.00100 |
Black |
Reel |
100 m |
8719605009784 |
| 70040.00500 |
Black |
Reel |
500 m |
8719605009791 |
History
| Update and Revision: |
Revision Number: 0.168 Revision Date: 02-15-2024 |
