Product Overview
| Suitable Applications: |
Audio snake cable used in professional studios; For the transmission of analogue signals |
Physical Characteristics (Overall)
| AWG |
Stranding |
Material |
Cross Section |
Construction n x D |
| 26 |
7×34 |
BC-OFHC – Oxygen-Free Bare Copper (High Conductivity) |
0.14 mm² |
7×0.16 mm |
| Total Number of Pairs: |
40 |
| Type |
Material |
Nominal Diameter |
Diameter +/- Tolerance |
| Insulation |
PE – Polyethylene |
1.00 mm |
0.03 mm |
| Number |
Color |
| Pair 1 t/m 40 |
White & Red |
| Material |
Material Trade Name |
Coverage [%] |
Drainwire Material |
Drainwire AWG |
Drainwire Construction n x D |
| Bi-Laminate (Alum+Poly) |
Beldfoil® |
100% |
Stranded tinned copper |
26 |
7×0.16 mm |
| Table Notes: |
Aluminum inside |
| Material |
Nominal Diameter |
Diameter +/- Tolerance |
| PVC – Polyvinyl Chloride |
2.80 mm |
0.10 mm |
| Table Notes: |
Elements are numbered for identification |
| Type |
Material |
Min. Coverage [%] |
| Tape |
Polyester |
|
| Braid |
Tinned Copper (TC) |
80% |
| Material |
Nominal Diameter |
Nominal Wall Thickness |
| PVC – Polyvinyl Chloride |
24.40 mm |
1.50 mm |

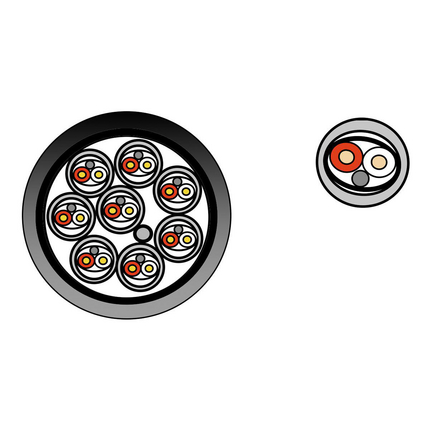

Construction and Dimensions
| Description |
Filler |
| 1 filler + 40 pairs |
Cotton |
Electrical Characteristics
| Nominal Conductor DCR |
| 134.0 Ohm/km |
| Nom. Capacitance Conductor to Conductor |
| 90 pF/m |
| Nominal Characteristic Impedance |
| 90 Ohm |
| Nominal Velocity of Propagation (VP) [%] |
| 66% |
Temperature Range
| Other Temp Range: |
-40 to +70 °C |
Mechanical Characteristics
| Min. Bend Radius During Installation: |
244 mm |
| Min Setting Radius: |
122 mm |
Applicable Environmental and Other Programs
| Environmental Space: |
Indoor |
Related Part Numbers
| Item # |
Color |
Put-Up Type |
Length |
EAN |
| 70037.00500 |
Black |
Reel |
500 m |
8719605009722 |
History
| Update and Revision: |
Revision Number: 0.159 Revision Date: 11-09-2022 |
