Product Overview
| Suitable Applications: |
1-pair 22AWG halogen-free screened pair cable; For analogue audio |
Physical Characteristics (Overall)
| AWG |
Stranding |
Material |
Construction n x D |
| 22 |
7×30 |
BC-OFHC – Oxygen-Free Bare Copper (High Conductivity) |
7×0.25 mm |
| Type |
Material |
Nominal Diameter |
Diameter +/- Tolerance |
| Insulation |
PE – Polyethylene |
1.16 mm |
0.05 mm |
| Number |
Color |
| Pair 1 |
Red & Black |
| Type |
Material |
Coverage [%] |
Drainwire Material |
Drainwire AWG |
Drainwire Construction n x D |
Drainwire Position |
| Tape |
Bi-Laminate (Alum+Poly) |
100% |
TC – Tinned Copper |
22 |
7×0.25 mm |
Under shielding foil |
| Material |
Nominal Diameter |
Diameter +/- Tolerance |
| LSZH – Low Smoke Zero Halogen (Flame Retardant) |
3.50 mm |
0.20 mm |

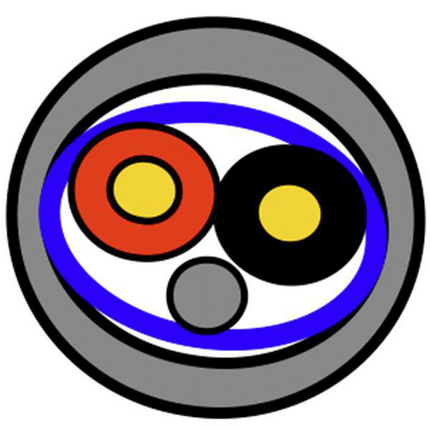

Construction and Dimensions
Electrical Characteristics
| Nominal Conductor DCR |
Nominal Outer Shield DCR |
| 46.0 Ohm/km |
46.9 Ohm/km |
| Nom. Capacitance Conductor to Conductor |
Nom. Capacitance Conductor to Shield |
| 115 pF/m |
220 pF/m |
| Nominal Inductance |
| 0.56 µH/m |
| Non-UL Voltage Rating |
| 100 V |
Temperature Range
| Other Temp Range: |
-30 to +70 °C |
Mechanical Characteristics
| Min. Bend Radius During Installation: |
35 mm |
| Min Setting Radius: |
17.5 mm |
Standards
Applicable Environmental and Other Programs
| Environmental Space: |
Indoor – Euroclass Eca |
Flammability, LS0H, Toxicity Testing
| IEC Flammability: |
IEC 60332-1-2 |
| IEC 60754-1 – Halogen Amount: |
Zero |
| IEC 60754-2 – Halogen Acid Gas Amount – Max. Conductivity: |
2.5 µS/mm |
| IEC 60754-2 – Halogen Acid Gas Amount – Min. pH: |
4.3 |
Related Part Numbers
| Item # |
Color |
Put-Up Type |
Length |
EAN |
| 70031.01100 |
Black |
Reel |
100 m |
8719605125750 |
| 70031.01500 |
Black |
Reel |
500 m |
8719605125767 |
| 70031.00100 |
Gray |
Reel |
100 m |
8719605009579 |
| 70031.00500 |
Gray |
Reel |
500 m |
8719605009586 |
History
| Update and Revision: |
Revision Number: 0.176 Revision Date: 02-15-2024 |
