Product Overview
| Suitable Applications: |
1-pair 24AWG halogen-free screened pair cable; For analogue audio |
Physical Characteristics (Overall)
| AWG |
Stranding |
Material |
Construction n x D |
| 24 |
7×32 |
BC-OFHC – Oxygen-Free Bare Copper (High Conductivity) |
7×0.20 mm |
| Type |
Material |
Nominal Diameter |
Diameter +/- Tolerance |
| Insulation |
PE – Polyethylene |
1.02 mm |
0.05 mm |
| Number |
Color |
| Pair 1 |
Red & Black |
| Type |
Material |
Coverage [%] |
Drainwire Material |
Drainwire AWG |
Drainwire Construction n x D |
Drainwire Position |
| Tape |
Bi-Laminate (Alum+Poly) |
100% |
TC – Tinned Copper |
24 |
7×0.20 mm |
Under shielding foil |
| Material |
Nominal Diameter |
Diameter +/- Tolerance |
| LSZH – Low Smoke Zero Halogen (Flame Retardant) |
3.10 mm |
0.10 mm |

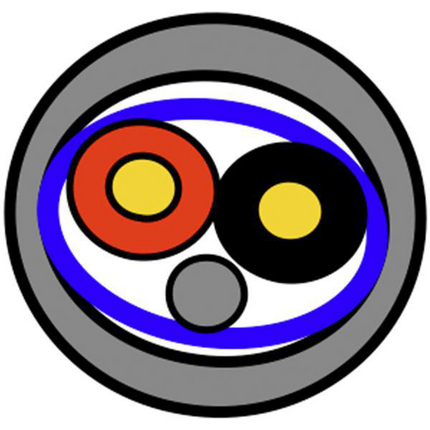

Construction and Dimensions
Electrical Characteristics
| Nominal Conductor DCR |
Nominal Outer Shield DCR |
| 88.5 Ohm/km |
52.0 Ohm/km |
| Nom. Capacitance Conductor to Conductor |
Nom. Capacitance Conductor to Shield |
| 92 pF/m |
180 pF/m |
| Nominal Inductance |
| 0.75 µH/m |
Temperature Range
| Other Temp Range: |
-30 to +70 °C |
Mechanical Characteristics
| Min. Bend Radius During Installation: |
31 mm |
| Min Setting Radius: |
15.5 mm |
Standards
| CPR Euroclass: |
Dca-s2,d1,a1 |
Applicable Environmental and Other Programs
| Environmental Space: |
Indoor – Euroclass Dca |
Flammability, LS0H, Toxicity Testing
| IEC Flammability: |
IEC 60332-1-2, IEC 60332-3-24 |
| IEC 60754-1 – Halogen Amount: |
Zero |
| IEC 60754-2 – Halogen Acid Gas Amount – Max. Conductivity: |
2.5 µS/mm |
| IEC 60754-2 – Halogen Acid Gas Amount – Min. pH: |
4.3 |
| IEC 61034-2 – Smoke Density Min. Transmittance: |
60% |
Related Part Numbers
| Item # |
Color |
Put-Up Type |
Length |
EAN |
| 70030CH.00500 |
Green |
Reel |
500 m |
8719605009562 |
History
| Update and Revision: |
Revision Number: 0.185 Revision Date: 02-15-2024 |
