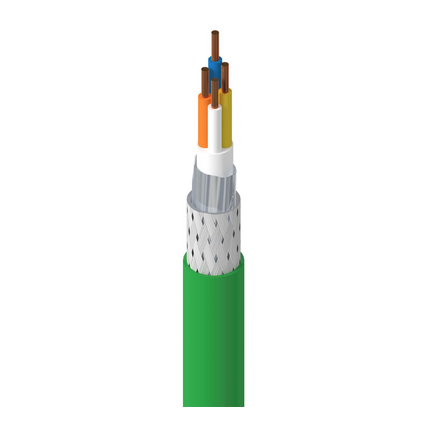

70006PU – DataTuff® 5E, 1Q #22 Sol BC, PO ins, F/B, PUR jkt, PROFINET Type A

Call for Price

parts-139

(SKU: 103-191021001) – MicroFlow drive wheel A 2.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-138

(SKU: 103-191021002) – MicroFlow drive wheel B 2.5 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-139

(SKU: 103-191021003) – MicroFlow drive wheel C 3.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-136

(SKU: 103-191021004) – MicroFlow drive wheel D 6.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-119

(SKU: 103-171114001) – MicroFlow sensor arm set 1.5 mm – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$321.10

parts-118

(SKU: 103-171114002) – MicroFlow sensor arm set 2.0 mm – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$321.10

Description

Product Overview

Suitable Applications: PROFINET Cat5e, harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc.

Construction Details

Conductor
Size Stranding Material No. of Pairs No. of Elements
22 AWG Solid BC – Bare Copper 2 4
Insulation
Material Nom. Insulation Diameter Color Code
PE – Polyethylene 1.5 mm (0.059 in) White & Blue & Yellow & Orange
1 Quad
Cable Core
Description
1 quad with center filler
Inner Jacket
Material Nom. Diameter
LSZH – Low Smoke Zero Halogen (Flame Retardant) 3.9 mm (0.15 in)
Table Notes: Bedding
Outer Shield
Shield Type Material Coverage
Tape Bi-Laminate (Alum+Poly)
Braid Tinned Copper (TC) 85%
Outer Jacket
Material Nom. Diameter
PUR – Polyurethane 6.5 mm (0.26 in)
Overall Cable Diameter (Nominal): 6.5 mm (0.26 in)

Electrical Characteristics

Electricals
Max. Conductor DCR Nom. Characteristic Impedance
57.1 Ohm/km 100 Ohm
Delay
Max. Delay Nom. Velocity of Prop.
530 ns/100m 68%
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. ACRF (ELFEXT) [dB] Min. SRL (Structural Return Loss) [dB]
1 2.1 dB/100m 65.3 64
4 4.1 dB/100m 56.3 52 23
10 6.5 dB/100m 50.3 44 25
16 8.3 dB/100m 47.2 40 25
31.25 11.7 dB/100m 42.9 34 23.6
62.5 17 dB/100m 38.4 28 21.5
100 22 dB/100m 35.3 24 20.1
Table Notes: Reference standard: ISO/IEC 11801 ed 2.0, Cat 5e
Transfer Impedance
Frequency Max. Transfer Impedance
10 Mhz Max. 10 mOhm/m
Voltage
Voltage Rating
300 V

Mechanical Characteristics

Temperature
Operating Installation Storage
-40°C to +80°C -5°C To +50°C -40°C to +80°C

Standards and Compliance

Environmental Suitability: Indoor, Indoor, Sunlight Resistance, Oil Resistance
Flammability / Reaction to Fire: IEC 60332-1-2
AWM Compliance: AWM 20549
Data Category: Category 5e
ISO/IEC Compliance: ISO/IEC 11801-1
European Directive Compliance: EU CE Mark

History

Update and Revision: Revision Number: 0.253 Revision Date: 01-10-2024

Part Numbers

Variants
Item # Color Putup Type Length EAN
70006PU.01305 Green Reel 305 m 8719605009272
70006PU.01500 Green Reel 500 m 8719605009289
