70001LS - Profibus PA, 1PR #18 Str TC, PO ins, F/B, LSNH Jkt, 300 V

70001LS – Profibus PA, 1PR #18 Str TC, PO ins, F/B, LSNH Jkt, 300 V

Call for Price

Compare
SKU: 70001LS Categories: , , ,

Description

Product Overview

Suitable Applications: Profibus PA or Foundation FieldBus PA

Physical Characteristics (Overall)

Conductor
Element AWG Stranding Material No. of Conductors No. of Pairs
Pair(s) 18 7×26 TC – Tinned Copper 2 1
Conductor Count: 2
Insulation
Material Nominal Diameter Diameter +/- Tolerance Nominal Wall Thickness
PE – Polyethylene (Foam) 2.5 mm 0.05 mm 0.65 mm
Color Chart
Number Color
Pair 1 Red & Green
Inner Shield
Type Material Coverage [%] Drainwire Material Drainwire AWG
Tape Bi-Laminate (Alum+Poly) TC – Tinned Copper AWG20/7
Braid Tinned Copper (TC) 85%
Inner Jacket
Material Color Nominal Diameter Nominal Wall Thickness
LSZH – Low Smoke Zero Halogen (Flame Retardant) Black or Blue 8 mm 1.15 mm
Table Notes: UV Stabilised
Outer Jacket
Material Nominal Diameter Diameter +/- Tolerance Nominal Wall Thickness
LSZH – Low Smoke Zero Halogen (Flame Retardant) 12.8 mm 0.3 mm 1.27 mm

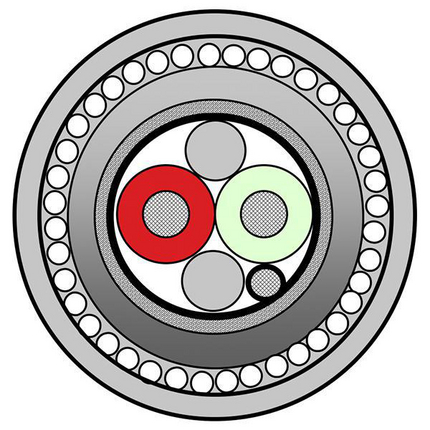

Construction and Dimensions

Cabling
Description Filler
1 pair and 2 fillers twisted to cable core Polyethylene (2x) (1.65 mm)
Armor
Type of Armor Material Thickness of Armoring Wires Coverage Percentage
Steel Wire Armoring Galvanized steel wire 0.9 mm Min. 95%

Electrical Characteristics

Conductor DCR
Max. Conductor DCR Max. Outer Shield DCR
20.5 Ohm/km 9 Ohm/km
Capacitance
Max. Capacitance Conductor to Conductor Max. Capacitance Unbalance
80 pF/m 4 pF/m
Impedance
Frequency [MHz] Nominal Characteristic Impedance Nominal Characteristic Tolerance
0.03125 MHz 100 Ohm 20 Ohm
High Frequency (Nominal/Typical)
Frequency [MHz] Nom. Insertion Loss
0.039 MHz 0.3 dB/100m
Delay
Nominal Velocity of Propagation (VP) [%]
77%
Voltage
Voltage Rating [V]
300 V

Temperature Range

Installation Temperature Range: -15°C To +70°C
Storage Temperature Range: -45°C To +70°C
Operating Temp Range (Flexible Install): -15°C To +70°C
Operating Temp Range (Fixed Install): -45°C To +70°C

Mechanical Characteristics

Oil Resistance: IEC 60811-2-1
Max. Pull Tension: 50 N
Min. Bend Radius During Installation: 120 mm
Min Setting Radius: 80 mm

Standards

CENELEC Compliance: EN 50290-2-20

Applicable Environmental and Other Programs

Environmental Space: Indoor, Indoor/Outdoor, Outdoor, Indoor/Outdoor – Euroclass Eca

Suitability

Suitability – Sunlight Resistance: Yes

Flammability, LS0H, Toxicity Testing

IEC Flammability: IEC 60332-3-24
IEC 60754-1 – Halogen Amount: Zero
IEC 60754-2 – Halogen Acid Gas Amount – Max. Conductivity: 2.5 µS/mm
IEC 60754-2 – Halogen Acid Gas Amount – Min. pH: 4.3

Related Part Numbers

Variants
Item # Color Put-Up Type Length EAN
70001LS.00120 Black Reel 120 m 8719605009050
70001LS.00500 Black Reel 500 m 8719605009067
70001LS.001000 Black Reel 1,000 m 8719605009043
70001LS.01500 Blue Reel 500 m 8719605009081
70001LS.011000 Blue Reel 1,000 m 8719605009074
70001LS.021000 Orange Reel 1,000 m 8719605009098

History

Update and Revision: Revision Number: 0.219 Revision Date: 02-20-2024
