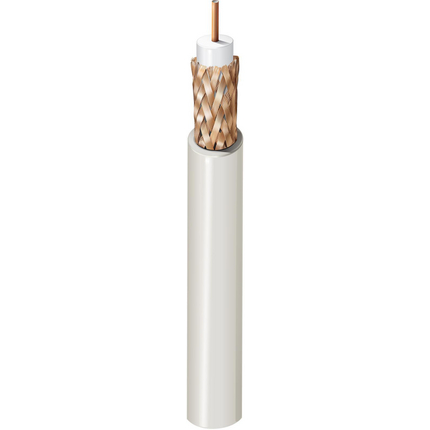

Product Overview
| Suitable Applications: |
Surveillance, CCTV Camera, Card Reader/Sensor |
Physical Characteristics (Overall)
| AWG |
Stranding |
Material |
Nominal Diameter |
No. of Coax |
| 22 |
Solid |
BCCS – Bare Copper Covered Steel |
0.025 in |
1 |
| Material |
Nominal Diameter |
| FEP – Fluorinated Ethylene Propylene (Foam) |
0.146 in |
| Type |
Material |
Coverage [%] |
| Braid |
Bare Copper (BC) |
95% |
| Material |
Material Trade Name |
Nominal Diameter |
| PVC – Polyvinyl Chloride |
Flamarrest® |
0.204 in |
Electrical Characteristics
| Nominal Conductor DCR |
Nominal Conductor DCR Conductor Resistance |
Nominal Outer Shield DCR |
Outer Conductor DCR |
| 41.2 Ohm/1000ft |
41.2 Ohm/1000ft |
3.4 Ohm/1000ft |
3.4 Ohm/1000ft |
| Nom. Capacitance Conductor to Shield |
| 13.5 pF/ft |
| Nominal Inductance |
| 0.107 µH/ft |
| Nominal Characteristic Impedance |
| 93 Ohm |
High Frequency (Nominal/Typical)
| Frequency [MHz] |
Nom. Insertion Loss |
| 1 MHz |
0.3 dB/100ft |
| 10 MHz |
0.9 dB/100ft |
| 50 MHz |
1.9 dB/100ft |
| 100 MHz |
2.7 dB/100ft |
| 200 MHz |
3.8 dB/100ft |
| 400 MHz |
5.3 dB/100ft |
| 700 MHz |
7.3 dB/100ft |
| 900 MHz |
8.2 dB/100ft |
| 1000 MHz |
8.7 dB/100ft |
| Nominal Delay |
Nominal Velocity of Propagation (VP) [%] |
| 1.21 ns/ft |
84% |
| UL Voltage Rating |
| 300 V RMS |
Temperature Range
| Operating Temperature Range: |
0°C To +75°C |
Mechanical Characteristics
| Bulk Cable Weight: |
30 lbs/1000ft |
| Max. Pull Tension: |
67 lbs |
| Min. Bend Radius/Minor Axis: |
2 in |
Standards
| CEC/C(UL) Compliance: |
CMP |
Applicable Environmental and Other Programs
| EU Directive 2000/53/EC (ELV): |
Yes |
| EU Directive 2003/11/EC (BFR): |
Yes |
| EU Directive 2011/65/EU (RoHS 2): |
Yes |
| EU Directive 2012/19/EU (WEEE): |
Yes |
| EU Directive 2015/863/EU (RoHS 2 amendment): |
Yes |
| EU Directive Compliance: |
Yes |
| MII Order #39 (China RoHS): |
Yes |
Suitability
| Suitability – Hazardous Locations: |
No |
| Suitability – Indoor: |
Yes |
Flammability, LS0H, Toxicity Testing
| UL Flammability: |
NFPA 262 |
| UL voltage rating: |
300 V RMS |
Plenum/Non-Plenum
Related Part Numbers
| Item # |
Color |
Put-Up Type |
Length |
UPC |
| 6539Y8 8771000 |
Natural |
Reel |
1,000 ft |
612825178200 |
Product Notes
| Notes: |
Print legend includes sequential footage marks. |
History
| Update and Revision: |
Revision Number: 0.287 Revision Date: 05-05-2023 |
