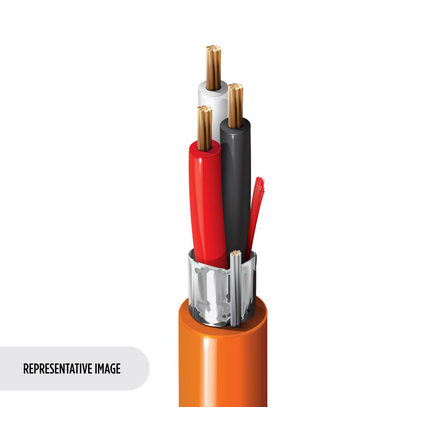

6501FE - Security & Sound, 3 Conductor 22 AWG BC, Shielded, Plenum

6501FE – Security & Sound, 3 Conductor 22 AWG BC, Shielded, Plenum

Call for Price

Compare
SKU: 6501FE Categories: , , ,

Description

Product Overview

Suitable Applications: Security System, Intercom/PA, Audio/Speaker, Noisy Environment

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 3 22 AWG 7×30 BC – Bare Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Conductor(s) PVC – Polyvinyl Chloride 0.009 in (0.23 mm) 0.047 in (1.2 mm) Black, Red, White
Outer Shield
Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 24 AWG (7×32) TC
Outer Jacket
Material Nom. Thickness Nom. Diameter Ripcord
PVC – Polyvinyl Chloride 0.015 in (0.38 mm) 0.135 in (3.43 mm) Yes
Overall Cable Diameter (Nominal): 0.135 in (3.43 mm)

Electrical Characteristics

Electricals
Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Max. Current
Conductor(s) 16.1 Ohm/1000ft 55 pF/ft (180 pF/m) 99 pF/ft (320 pF/m) 2.8 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V (CMP)

Mechanical Characteristics

Temperature
UL Temperature Operating
75°C 0°C to +75°C
Bend Radius
Stationary Min. Installation Min.
1.35 in (34.3 mm) 1.35 in (34.3 mm)
Max. Pull Tension: 32.8 lbs (14.9 kg)
Bulk Cable Weight: 15 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor – Plenum, Indoor
Flammability / Reaction to Fire: NFPA 262, UL 910 (Plenum), FT6
CPR Compliance: CPR Euroclass: Eca
NEC / UL Compliance: Article 800, CMP
CEC / C(UL) Compliance: CMP
European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance: UKCA Mark
APAC Compliance: China RoHS II (GB/T 26572-2011)
Non-Plenum Number: 5501FE

History

Update and Revision: Revision Number: 0.533 Revision Date: 03-29-2023

Part Numbers

Variants
Item # Color Putup Type Length UPC Footnote
6501FE 8771000 Natural Reel 1,000 ft 612825177487 C
6501FE 877U1000 Natural UnReel 1,000 ft 612825426271
6501FE 877Z1000 Natural ReelTuff Box 1,000 ft 612825177517
