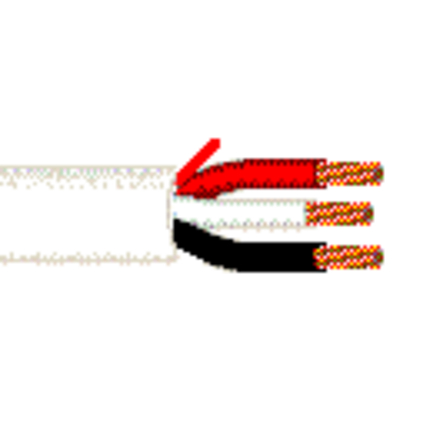

6201UE - Security & Sound, 3 Conductor 16 AWG BC, Plenum

6201UE – Security & Sound, 3 Conductor 16 AWG BC, Plenum

Call for Price

Compare
SKU: 6201UE Categories: , , ,

Description

Product Overview

Suitable Applications: Intercom/PA Systems, Sound/Audio Systems

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 3 16 AWG 19×29 BC – Bare Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Conductor(s) PVC – Polyvinyl Chloride 0.008 in (0.20 mm) 0.073 in (1.9 mm) Black, Red, White
Outer Shield
Material
No Shield
Outer Jacket
Material Nom. Thickness Nom. Diameter Ripcord
PVC – Polyvinyl Chloride 0.015 in (0.38 mm) 0.187 in Yes
Overall Cable Diameter (Nominal): 0.187 in

Electrical Characteristics

Electricals
Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Max. Current
4.2 Ohm/1000ft 36.5 pF/ft (120 pF/m) 6.25 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V

Mechanical Characteristics

Temperature
UL Temperature Operating
75°C -20°C To +75°C
Bend Radius
Stationary Min. Installation Min.
1.87 in (47.5 mm) 1.87 in
Max. Pull Tension: 88 lbs (40 kg)
Bulk Cable Weight: 33 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor – Plenum, Indoor
Flammability / Reaction to Fire: NFPA 262 (UL 910), FT6
NEC / UL Compliance: Article 800, CMP
CEC / C(UL) Compliance: CMP
European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)
Non-Plenum Number: 5201UE

History

Update and Revision: Revision Number: 0.361 Revision Date: 12-20-2022

Part Numbers

Variants
Item # Color Putup Type Length UPC Footnote
6201UE 8771000 Natural Reel 1,000 ft 612825174196 C
6201UE 877U1000 Natural UnReel 1,000 ft 612825427117
6201UE 877Z1000 Natural ReelTuff Box 1,000 ft 612825174219
