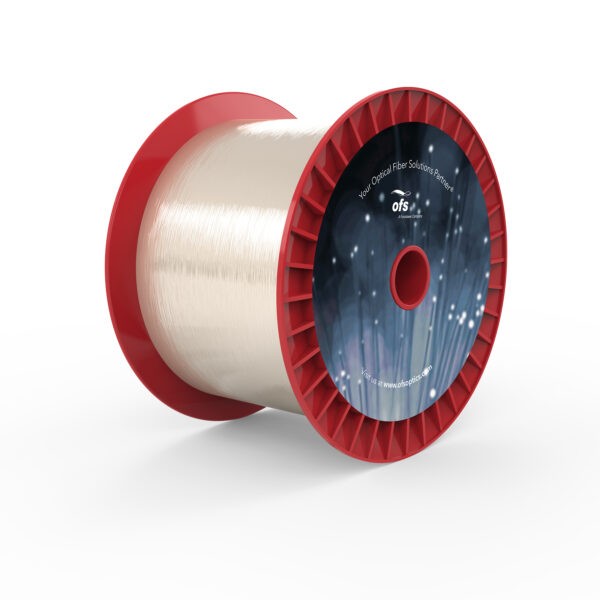

60/125/250 0.22NA Ge SI FIBER
Call for Price
Item Number
F8950
F8950
Description
60/125/250 0.22NA Ge SI FIBER
Description
Item Number
F8950
F8950
Description
60/125/250 0.22NA Ge SI FIBER
| Numerical Aperture | 0.22 |
|---|---|
| Attenuation | @ 850 nm, ≤ 6 (dB/km) |
| Water Content | Low OH |
| Core Diameter | 60 ± 3.0 (µm) |
| Core/Clad Offset | ≤ 2 (µm) |
| Operating Temperature | -40 to +85 (ºC) |
| Short-Term Bend Radius | ≥ 10 (mm) |
| Long-Term Bend Radius | ≥ 17 (mm) |
| Proof Test Level | ≥ 100 (kpsi) |
| Proof Test Level | 0.689 (GPa) |
| Typical Applications | Diode Pumping Systems, Free Space Optics, Medical Sensing and Imaging, Other Industrial Applications, Power Transmission from Visible Through Near-IR, Printing, Raman Pumping, SM and MM Communications, Use as Input Fiber in a Power Combiner |
| Options | Buffering, Cabling, Coating Color, Connectorization, Core Diameter, Metalization |
| Type | Multimode Step-Index |
| Cladding Diameter | 125 ± 2.0 (µm) |
| Coating Diameter | 250 ± 15 (µm) |
| Coating Concentricity | ≥ 80% |
| Coating Material | Dual UV Acrylate |
| Clad Non-Circularity | ≤ 2.0% |
| Numerical Aperture Tolerance | ± 0.02 |
