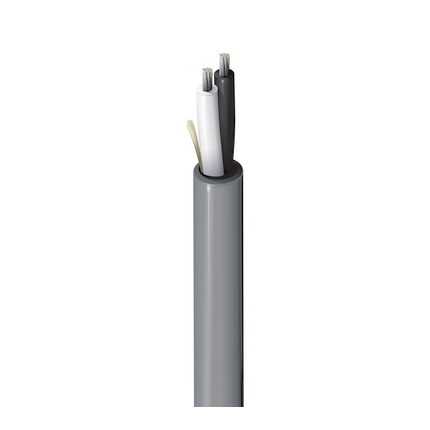

5T00UP - Audio Cable, 2 Conductor 10 AWG, BC, Unshielded, CL2

5T00UP – Audio Cable, 2 Conductor 10 AWG, BC, Unshielded, CL2

Call for Price

Compare
SKU: 5T00UP Categories: , , ,

Description

Product Overview

Suitable Applications: Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 2 10 AWG 65×28 BC – Bare Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Conductor(s) PVC – Polyvinyl Chloride 0.020 in (0.51 mm) 0.152 in (3.86 mm) Black, White
Outer Jacket
Material Nom. Thickness Nom. Diameter Ripcord
PVC – Polyvinyl Chloride 0.026 in (0.66 mm) 0.356 in (9.04 mm) Yes
Overall Cable Diameter (Nominal): 0.356 in (9.04 mm)

Electrical Characteristics

Electricals
Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Max. Current
Conductor(s) 1.03 Ohm/1000ft 26 pF/ft (85 pF/m) 27.8 Amps per conductor @ 25°C
Voltage
UL Voltage Rating
300 V

Mechanical Characteristics

Temperature
UL Temperature Operating
75°C -20°C to +75°C
Bend Radius
Stationary Min. Installation Min.
3.6 in (91 mm) 3.6 in (91 mm)
Max. Pull Tension: 260 lbs (120 kg)
Bulk Cable Weight: 91 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
Flammability / Reaction to Fire: UL 1685 UL loading , IEC 60332-1-2
CPR Compliance: CPR Euroclass: Eca
NEC / UL Compliance: Article 725, CL2
European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance: UKCA Mark
APAC Compliance: China RoHS II (GB/T 26572-2011)
Plenum Number: 6T00UP

History

Update and Revision: Revision Number: 0.486 Revision Date: 02-15-2024

Part Numbers

Variants
Item # Color Putup Type Length UPC Footnote
5T00UP 0101000 Black Reel 1,000 ft 612825437871 C
5T00UP 0105000 Black Reel 5,000 ft
5T00UP 008500 Gray Reel 500 ft 612825154495 C
5T00UP 0081000 Gray Reel 1,000 ft 612825154488 C
