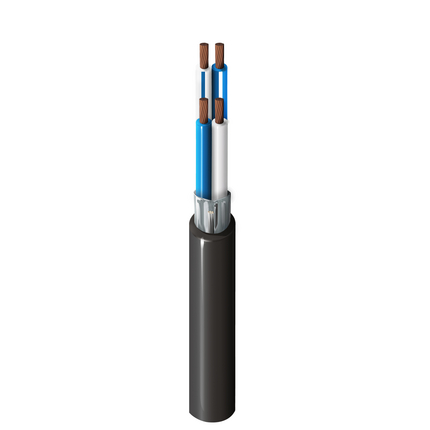

5982441CZ - Flexible Audio Cable 4C #24 Str BC, Beldfoil® shielded(Z-Fold), PVC Jkt

5982441CZ – Flexible Audio Cable 4C #24 Str BC, Beldfoil® shielded(Z-Fold), PVC Jkt

Call for Price

Compare
SKU: 5982441CZ Categories: , , ,

Description

Product Overview

Suitable Applications: Line level audio; Low voltage analog signals and control

Construction Details

Conductor
Element No. of Elements Size Stranding Class Material
Conductor(s) 4 24 AWG Class 6 BC – Bare Copper
Insulation
Material Nom. Insulation Diameter Color Code
PE – Polyethylene 1.20 mm (0.0472 in) Blue, White, Blue/White, White/Blue
Outer Shield
Shield Type Material Drainwire Type
Tape Bi-Laminate (Alum+Poly) 26 AWG (7×34) TC
Outer Jacket
Material
PVC – Polyvinyl Chloride
Overall Cable Diameter (Nominal): 5.0 mm (0.20 in)

Electrical Characteristics

Electricals
Max. Conductor DCR
87.6 ?/km @ 20°C

Mechanical Characteristics

Temperature
Operating
-20°C To +60°C
Bulk Cable Weight: 33 Kg/km

Standards and Compliance

Flammability / Reaction to Fire: VW-1
European Directive Compliance: EU Directive 2011/65/EU (RoHS 2)
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.11 Revision Date: 01-17-2024
