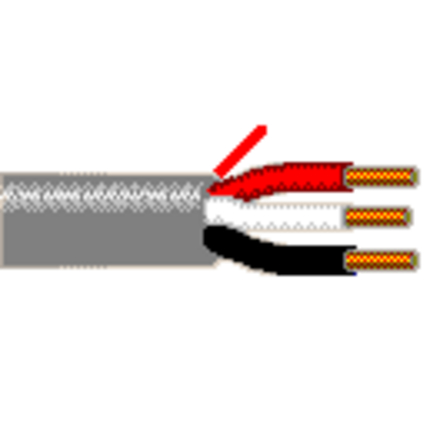

5321UE - Security & Sound, 3 Conductor 18 AWG BC, Riser

5321UE – Security & Sound, 3 Conductor 18 AWG BC, Riser

Call for Price

Compare
SKU: 5321UE Categories: , , ,

Description

Product Overview

Suitable Applications: Addressable Fire Systems, Data Circuits, Monitor/Detection, Control Circuits, Initiating Circuits, Notification Circuits

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 3 18 AWG Solid BC – Bare Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Conductor(s) PP – Polypropylene 0.007 in (0.18 mm) 0.055 in (1.4 mm) Black, Red, White
Outer Shield
Material
No Shield
Outer Jacket
Material Nom. Thickness Nom. Diameter Ripcord
PVC – Polyvinyl Chloride 0.017 in (0.43 mm) 0.151 in Yes
Overall Cable Diameter (Nominal): 0.151 in

Electrical Characteristics

Electricals
Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Max. Current
6.4 Ohm/1000ft 23 pF/ft (75 pF/m) 5 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V

Mechanical Characteristics

Temperature
UL Temperature Operating
75°C 0°C To +75°C
Bend Radius
Stationary Min. Installation Min.
1.51 in (38.4 mm) 1.51 in
Max. Pull Tension: 58.8 lbs (26.7 kg)
Bulk Cable Weight: 20 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor – Riser, Indoor
Flammability / Reaction to Fire: UL1666 Riser, FT4
NEC / UL Compliance: Article 800, CMR
CEC / C(UL) Compliance: CMG
European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)
Plenum Number: 6321UE

History

Update and Revision: Revision Number: 0.351 Revision Date: 12-20-2022

Part Numbers

Variants
Item # Color Putup Type Length UPC
5321UE 0081000 Gray Reel 1,000 ft 612825160571
5321UE 008U1000 Gray UnReel 1,000 ft 612825423652
5321UE 008Z1000 Gray ReelTuff Box 1,000 ft 612825160830
