513945S - Surveillance and CCTV Applications

513945S – Surveillance and CCTV Applications

Call for Price

Compare
SKU: 513945S Categories: , , ,

Description

Product Overview

Suitable Applications: Coaxial cable used in analogue video and CCTV communication networks designed according European Standard EN 50117-1; Operating frequencies between 5 and 1000 MHz

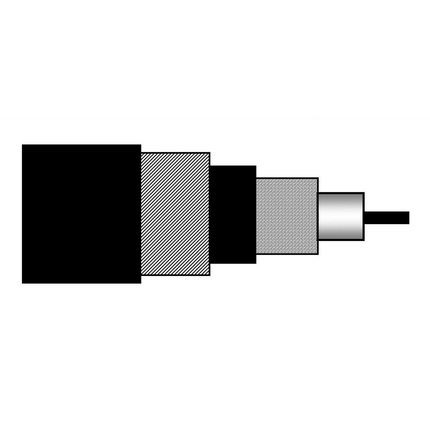

Construction Details

RG Type: 11
Conductor
No. of Elements Size Stranding Nom. Diameter Material
1 14 AWG Solid 1.63 mm BC – Bare Copper
Insulation
Material Nom. Insulation Diameter
PE – Polyethylene (Foam) 7.11 mm (0.280 in)
Table Notes: Gas Injected
Inner Shield
Shield Type Material
Braid Bare Copper (BC)
Inner Jacket
Material Nom. Diameter
PVC – Polyvinyl Chloride 10.3 mm (0.406 in)
Outer Shield
Outer Shield Type Material Coverage
Braid Bare Copper (BC) 95%
Armor
Armor Type & Material Armor Thickness Coverage
SWA – Steel Wire Armor 1.25 mm (0.0492 in) 90%
Outer Jacket
Material Nom. Diameter
PVC – Polyvinyl Chloride 15.6 mm

Electrical Characteristics

Return Loss (RL)
Frequency Min. Return Loss
5 – 30 MHz 23 dB
30 – 470 MHz 23 dB
470 – 1000 MHz 20 dB
Table Notes: In each frequency band, 3 peak values up to 4 dB lower are allowed
Attenuation
Frequency Nom. Attenuation
1 MHz 0.56 dB/100m
10 MHz 1.15 dB/100m
50 MHz 2.95 dB/100m
100 MHz 4.26 dB/100m
200 MHz 6.20 dB/100m
400 MHz 9.5 dB/100m
700 MHz 13.5 dB/100m
900 MHz 15.8 dB/100m
1000 MHz 17.1 dB/100m
Table Notes: Max. attenuation 10% higher
Electricals
Max. Conductor DCR Nom. Outer Shield DCR Nom. Capacitance
Cond-to-Shield		 Nom. Characteristic Impedance Nom. Velocity of Prop.
8.5 Ohm/km (2.6 Ohm/1000ft) 3.9 Ohm/km (1.2 Ohm/1000ft) 53 pF/m (16 pF/ft) 75 Ohm 84%

Mechanical Characteristics

Temperature
Operating Installation Storage
-30°C To +75°C -5°C To +50°C -30°C To +75°C
Bend Radius
Stationary Min.
101 mm (3.98 in)
Bulk Cable Weight: 486 kg/km

Standards and Compliance

Environmental Suitability: Indoor/Outdoor
Flammability / Reaction to Fire: IEC 60332-1-2
CENELEC Compliance: EN 50117-1EN 50117-9-1EN 50290-2-20

History

Update and Revision: Revision Number: 0.197 Revision Date: 03-30-2023

Part Numbers

Variants
Item # Color Putup Type Length EAN
513945S.00500 Black Reel 500 m 8719605007926
513945S.001000 Black Reel 1,000 m 8719605007919
