| Suitable Applications: | Intercom/PA Systems, Sound/Audio Systems, Fire Alarm Systems |

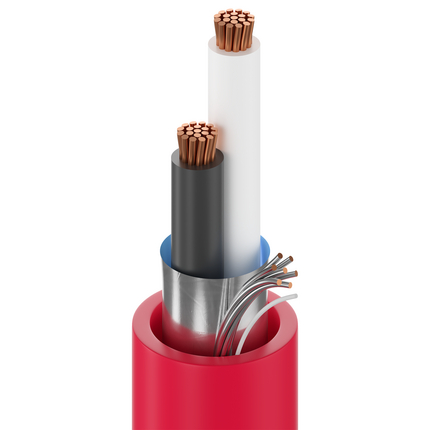

| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Conductor(s) | 2 | 14 AWG | 19×26 | BC – Bare Copper |
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|---|
| Conductor(s) | PP – Polypropylene | 0.011 in (0.28 mm) | 0.092 in (2.3 mm) | Black, White |
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% | 22 AWG (7×30) TC |
| Material | Nom. Thickness | Nom. Diameter | Ripcord |
|---|---|---|---|
| PVC – Polyvinyl Chloride | 0.017 in (0.43 mm) | 0.222 in (5.64 mm) | Yes |
| Overall Cable Diameter (Nominal): | 0.222 in (5.64 mm) |
| Element | Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Other (Conds + Shield) | Max. Current |
|---|---|---|---|---|
| Conductor(s) | 2.54 Ohm/1000ft | 54 pF/ft (180 pF/m) | 97.25 pF/ft (319.1 pF/m) | 25 Amps per conductor @ 30°C |
| UL Voltage Rating |
|---|
| 300 V (CL3R, FPLR) |
| UL Temperature | Operating |
|---|---|
| 75°C | -20°C to +75°C |
| Stationary Min. | Installation Min. |
|---|---|
| 2.2 in (56 mm) | 2.2 in (56 mm) |
| Max. Pull Tension: | 104.1 lbs (47.22 kg) |
| Bulk Cable Weight: | 37 lbs/1000ft |
| Environmental Suitability: | Indoor – Riser, Indoor |
| Flammability / Reaction to Fire: | UL 1666 Riser, IEEE 1202 FT4, IEC 60332-1-2 |
| CPR Compliance: | CPR Euroclass: Eca |
| NEC / UL Compliance: | Article 725, Article 760, CL3R, FPLR |
| European Directive Compliance: | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance: | UKCA Mark |
| APAC Compliance: | China RoHS II (GB/T 26572-2011) |
| Plenum Number: | 6100FH |
| Update and Revision: | Revision Number: 0.529 Revision Date: 02-15-2024 |
| Item # | Color | Putup Type | Length | UPC/EAN | Footnote |
|---|---|---|---|---|---|
| 5100FE.00152 | Chrome | Reel | 152 m | 8719605007704 | |
| 5100FE.00305 | Chrome | Reel | 305 m | 8719605007728 | |
| 5100FE.001000 | Chrome | Reel | 1,000 m | 8719605007698 | |
| 5100FE 008500 | Gray | Reel | 500 ft | 612825156222 | |
| 5100FE 0081000 | Gray | Reel | 1,000 ft | 612825156246 | C |
| 5100FE 008U1000 | Gray | UnReel | 1,000 ft | 612825423591 | |
| 5100FE 008Z1000 | Gray | ReelTuff Box | 1,000 ft | 612825156260 | |
| 5100FE.003000 | Gray | Reel | 3,000 m | 8719605007711 | |
| 5100FE 0021000 | Red | Reel | 1,000 ft | 612825423584 | C |
| 5100FE 002Z1000 | Red | ReelTuff Box | 1,000 ft | 612825156239 |
