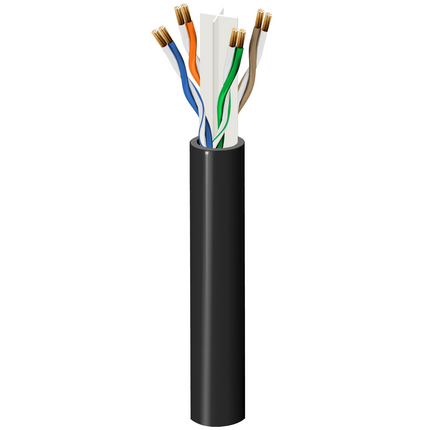

50106XU – 50106XU Industrial Cat6 Cable, U/UTP, 4 Pair, AWG 24 Stranded, PE/PVC, High-Flex

Call for Price

parts-139

(SKU: 103-191021001) – MicroFlow drive wheel A 2.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-138

(SKU: 103-191021002) – MicroFlow drive wheel B 2.5 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-139

(SKU: 103-191021003) – MicroFlow drive wheel C 3.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-136

(SKU: 103-191021004) – MicroFlow drive wheel D 6.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-119

(SKU: 103-171114001) – MicroFlow sensor arm set 1.5 mm – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$321.10

parts-118

(SKU: 103-171114002) – MicroFlow sensor arm set 2.0 mm – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$321.10

Description

Product Overview

Suitable Applications: Interconnecting Industrial Ethernet Switches, IP controllers, media convertors, distributed control system, programmable logic controller and transmitting industrial protocol data signals. Suitable for transmitting 1000BASE?TX Gigabit Ethernet, 100BASE?T Fast Ethernet, 100BaseVG ANYLAN, 155ATM, 622ATM, RS?422, 250MHz Category 6, EtherCAT. Stranded conductor highly applicable for flexible installation. These are highly durable & ruggedized cables for both indoor and outdoor use meeting IEC 60332?1 flame rating.

Physical Characteristics (Overall)

Conductor
AWG Stranding Material
24 Stranded BC – Bare Copper
Conductor Count: 8
Total Number of Pairs: 4
Insulation
Material
PO – Polyolefin
Color Chart
Number Color
Pair 1 White / Blue & Blue
Pair 2 White / Orange & Orange
Pair 3 White / Green & Green
Pair 4 White / Brown & Brown
Cabling
Filler
Central Spline
Outer Shield
Material
No Shield
Outer Jacket
Material Nominal Diameter
PVC – Polyvinyl Chloride 6.3 mm

Electrical Characteristics

Conductor DCR
Max. Conductor DCR Max DCR Unbalanced Between Pairs [%]
93.8 Ohm/km 5 %
Capacitance
Max. Capacitance Unbalance Nom.Mutual Capacitance
5,600 pF/100m 330 pF/100m
Impedance
Nominal Characteristic Impedance
100 Ohm
Delay
Max. Delay Max. Delay Skew
538 ns/100m 45 ns/100m
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. PSNEXT [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB]
1 MHz 2.4 dB/100m 74.3 dB 72.7 dB 67.8 dB 64.8 dB 20 dB
4 MHz 4.5 dB/100m 65.3 dB 63.3 dB 55.8 dB 52.8 dB 23 dB
8 MHz 6.4 dB/100m 60.8 dB 58.8 dB 49.7 dB 46.7 dB 24.5 dB
10 MHz 7.1 dB/100m 59.3 dB 57.3 dB 47.8 dB 44.8 dB 25 dB
16 MHz 9.1 dB/100m 56.2 dB 54.2 dB 43.7 dB 40.7 dB 25 dB
20 MHz 10.2 dB/100m 54.8 dB 52.8 dB 41.8 dB 38.8 dB 25 dB
25 MHz 11.4 dB/100m 53.3 dB 51.3 dB 39.8 dB 36.8 dB 24.2 dB
31.25 MHz 12.8 dB/100m 51.9 dB 49.9 dB 37.9 dB 34.9 dB 23.3 dB
62.5 MHz 18.5 dB/100m 47.4 dB 45.4 dB 31.9 dB 28.9 dB 20.7 dB
100 MHz 23.8 dB/100m 44.3 dB 42.3 dB 27.8 dB 24.8 dB 19 dB
200 MHz 34.8 dB/100m 39.8 dB 37.8 dB 21.8 dB 18.8 dB 16.4 dB
250 MHz 39.4 dB/100m 38.3 dB 36.3 dB 19.8 dB 16.8 dB 15.6 dB
Table Notes: Limits below 4MHz are for information only.
Voltage
UL Voltage Rating Voltage Rating [V]
300 V RMS (UL AWM Style 2095) 300 V RMS (UL AWM Style 2095)

Temperature Range

Operating Temperature Range: -20°C To 75°C

Mechanical Characteristics

Flex Cycle Rating: ? 2 million
Bulk Cable Weight: 42 kg/km
Max. Pull Tension: 110 N
Min. Bend Radius During Installation: 50.4 mm

Standards

ISO/IEC Compliance: ISO/IEC 11801
Data Category: Category 6
ANSI Compliance: ANSI/TIA 568-D.2

Applicable Environmental and Other Programs

Environmental Space: Indoor/Outdoor
EU Directive 2011/65/EU (RoHS 2): Yes
EU Directive Compliance: Yes

Suitability

Suitability – Indoor: Yes
Suitability – Oil Resistance: Yes
Suitability – Outdoor: Yes
Suitability – Sunlight Resistance: Yes

Flammability, LS0H, Toxicity Testing

IEC Flammability: IEC 60332-1-2
UL voltage rating: 300 V RMS (UL AWM Style 2095)

Related Part Numbers

Variants
Item # Color Put-Up Type Length
50106XU 010305M Black Reel 305 m
50106XU 006305M Blue Reel 305 m
50106XU 008305M Gray Reel 305 m
Footnote: For more order number information, please approach your Belden sales representative freely
