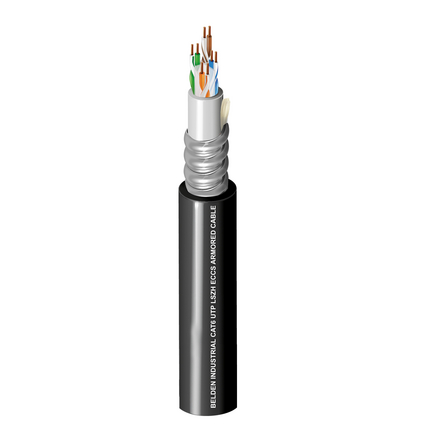

50106UASL - CAT 6 U/UTP, ECCS armor, LSZH, IEC60332-1

50106UASL – CAT 6 U/UTP, ECCS armor, LSZH, IEC60332-1

Call for Price

Compare
SKU: 50106UASL Categories: , , ,

Description

Product Overview

Suitable Applications: Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM, NTSC/PAL Component or Composite Video, AES/EBU, Digital Video, RS-422, Operate frequency to 250MHz Category 6. The cable exceeds the channel requirements(70 Meters) specified in TIA 568 standards

Construction Details

Conductor
Size Stranding Material No. of Pairs No. of Elements
24 Solid BC – Bare Copper 4 8
Insulation
Material Color Code
PO – Polyolefin Blue & White with Blue Stripe, Orange & White with Orange Stripe, Green & White with Green Stripe, Brown & White with Brown Stripe
Cable Core
Description
Overall Cabling Fillers
Inner Jacket
Material Nom. Diameter Ripcord Color
LSZH – Low Smoke Zero Halogen (Flame Retardant) 6.0 mm (0.24 in) Yes Grey
Armor
Armor Type & Material Coverage
CST – Corrugated Steel Tape 100%
Outer Jacket
Material Nom. Diameter Ripcord
LSZH – Low Smoke Zero Halogen (Flame Retardant) 10.4 mm (0.409 in) Yes

Electrical Characteristics

Electricals
Max. Conductor DCR Max. Mutual Capacitance Max. Capacitance Unbalance Nom. Characteristic Impedance
93.8 Ohm/km (28.6 Ohm/1000ft) 56 pF/m (17 pF/ft) 330 pF/100m 100 Ohm
Delay
Max. Delay Skew
45 ns/100m
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. PSNEXT [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB]
1 2.1 dB 65 62 63.3 60.3 19
4 4 dB 63 60.5 51.2 48.2 19
8 5.7 dB 58.2 55.6 54.2 42.2 19
10 6.3 dB 56.6 54 43.3 40.3 19
16 8 dB 53.2 50.6 39.2 36.2 18
20 9 dB 51.6 49 37.2 34.2 17.5
25 10.1 dB 50 47.3 35.3 32.3 17
31.25 11.4 dB 48.4 45.7 33.4 30.4 16.5
62.5 16.5 dB 43.4 40.6 27.3 24.3 14
100 21.3 dB 39.9 37.1 23.3 20.3 12
200 31.5 dB 34.8 31.9 17.2 14.2 9
250 35.9 dB 33.1 30.2 15.3 12.3 8
Voltage
UL Voltage Rating
72 V DC

Mechanical Characteristics

Temperature
Operating Installation
-20°C To +75°C 0°C To +50°C
Bend Radius
Installation Min.
210 mm (8.3 in)
Max. Pull Tension: 110 N (25 lbf)
Bulk Cable Weight: 82 kg/km (55 lbs/1000ft)

Standards and Compliance

Environmental Suitability: Indoor, Outdoor, Sunlight Resistance
Flammability / Reaction to Fire: IEC 60332-1-2
TIA/EIA Compliance: TIA-568.2-D Channel Requirement
ISO/IEC Compliance: IEC 61034-2 – Smoke Density Min Transmittance = 60%
European Halogen Free Standards: IEC 60754-2 – Halogen Acid Gas Amount – Max. Conductivity = 10 µS/mm, IEC 60754-2 – Halogen Acid Gas Amount – Min. pH = 4.3

Product Notes

Notes: The channel length shall not exceed 70M (64M horizontal cabling + 3M patch cord*2), the channel test configuration as per below figure:

History

Update and Revision: Revision Number: 0.22 Revision Date: 12-12-2023

Part Numbers

Variants
Item # Color Length
50106UASL 010305M Black 305 m
