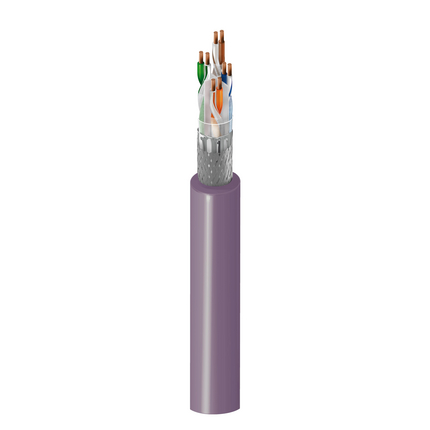

50106HSF – BELDEN Industrial Ethernet CAT6, SF/UTP, 4x2x 0.15mm2 Stranded, PO/PVC, High-Flex Cable

Call for Price

parts-139

(SKU: 103-191021001) – MicroFlow drive wheel A 2.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-138

(SKU: 103-191021002) – MicroFlow drive wheel B 2.5 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-139

(SKU: 103-191021003) – MicroFlow drive wheel C 3.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-136

(SKU: 103-191021004) – MicroFlow drive wheel D 6.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-119

(SKU: 103-171114001) – MicroFlow sensor arm set 1.5 mm – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$321.10

parts-118

(SKU: 103-171114002) – MicroFlow sensor arm set 2.0 mm – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$321.10

Description

Product Overview

Suitable Applications: Ethernet: 10GBase-T, 100Base-TX, 1000Base-T

Construction Details

Conductor
Element Size Material
Pair(s) 0.15 mm² BC – Bare Copper
Insulation
Material Nom. Insulation Diameter Color Code
PO – Polyolefin 1.0 mm (0.039 in) White/Blue, Blue, White/Orange, Orange, White/Green, Green, White/Brown, Brown
Outer Shield
Shield Type Material Coverage
Tape Polyester + Bi-Laminate (Alum+Poly)
Braid Tinned Copper (TC) 80%
Outer Jacket
Material
PVC – Polyvinyl Chloride
Overall Cable Diameter (Nominal): 7.3 mm (0.29 in)

Electrical Characteristics

Electricals
Max. Conductor DCR Nom. Characteristic Impedance
145 ?/km @ 20°C 100 Ohm
Table Notes: Max. Transmission Length a) Link Class: Class E (Data Application upto 250 MHz), Channel: 74m, Permanent: 63m; Nominal velocity of Propagation: 72%
Voltage
UL Voltage Rating Breakdown Voltage
300 V 2000V AC/Min.

Mechanical Characteristics

Temperature
Operating
-20 ? to + 80?
Table Notes: Drag Chain Test (5 million cycles): a) Bending Radius: Max. 12.5D, Speed: Min. 30 Cycles/Min., Chain Length: 1M ; Drag Chain Test (10 million cycles): a) Bending Radius: Max. 14.5D, Speed: Min. 30 Cycles/Min., Chain Length: 1M

Standards and Compliance

AWM Compliance: AMW 2095
Data Category: Category 6
European Directive Compliance: EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2)
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.12 Revision Date: 03-18-2024
