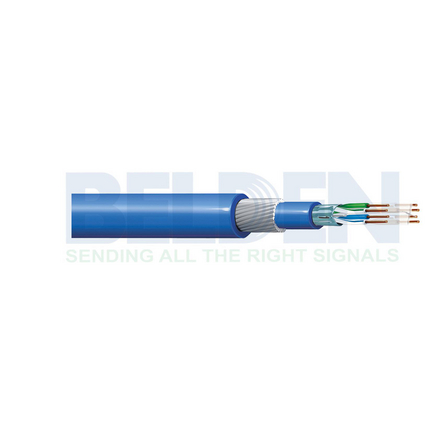

50106FLS - CAT 6 4P23AWG, F/UTP, SWA, LSZH Jkt, Indoor/Outdoor

50106FLS – CAT 6 4P23AWG, F/UTP, SWA, LSZH Jkt, Indoor/Outdoor

Call for Price

Compare
SKU: 50106FLS Categories: , , ,

Description

Product Overview

Suitable Applications: Industrial Ethernet cables are used for interconnecting Industrial Ethernet Switches, IP controllers, media convertors, distributed control system, programmable logic controller and transmitting industrial protocol data signals. These cables are suitable for transmitting 1000BASE-TX Gigabit Ethernet, 100BASE-T Ethernet, 100BaseVG ANYLAN, 155ATM, 622ATM, RS-422, 250MHz Category 6, EtherCAT. These are highly durable & ruggedized cables for both indoor and outdoor use meeting IEC 60332-3-24 and IEC 60754-1 & 2

Construction Details

Conductor
Size Stranding Material No. of Pairs
23 Solid BC – Bare Copper 4
Insulation
Material Nom. Insulation Diameter Color Code
PO – Polyolefin 1.10 mm (0.0433 in) Blue & White with Blue Markings, Orange & White with Orange Markings, Green & White with Green Markings, Brown & White with Brown Markings
Inner Jacket
Material
LSZH – Low Smoke Zero Halogen (Flame Retardant)
Outer Shield
Shield Type Material Drainwire Type
Tape Bi-Laminate (Alum+Poly) 26 AWG (Solid) TC
Armor
Armor Type & Material
SWA – Steel Wire Armor
Outer Jacket
Material Nom. Diameter Ripcord
LSZH – Low Smoke Zero Halogen (Flame Retardant) 12.3 mm Yes

Electrical Characteristics

Electricals
Max. Conductor DCR Max. Capacitance Unbalance Nom. Characteristic Impedance
93.8 Ohm/km 330 pF/100m 100 Ohm
Delay
Max. Delay Max. Delay Skew
538 ns/100m 45 ns/100m
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) [dB/100m] Min. NEXT [dB] Min. PSNEXT [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB]
1 2 74.3 72.3 67.8 64.8 20
4 3.8 65.3 63.3 55.8 52.8 23
8 5.3 60.8 58.8 49.7 46.7 24.5
10 6 59.3 57.3 47.8 44.8 25
16 7.6 56.2 54.2 43.7 40.7 25
20 8.5 54.8 52.8 41.8 38.8 25
25 9.5 53.3 51.3 39.8 36.8 24.3
31.25 10.7 51.9 49.9 37.9 34.9 23.6
62.5 15.4 47.4 45.4 31.9 28.9 21.5
100 19.8 44.3 42.3 27.8 24.8 20.1
155 25.2 41.4 39.4 24 21 18.8
200 29 39.8 37.8 21.8 18.8 18
250 32.8 38.3 36.3 19.8 16.8 17.3

Mechanical Characteristics

Temperature
Operating
-20°C to +75°C
Bend Radius
Installation Min.
98.0 mm (3.86 in)
Max. Pull Tension: 110 N (25 lbf)
Bulk Cable Weight: 282 kg/km (189 lbs/1000ft)

Standards and Compliance

Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Oil Resistance, Oil Resistance, Burial
Data Category: Category 6
ISO/IEC Compliance: ISO/IEC 11801
European Halogen Free Standards: IEC 60754-1 – Halogen Amount = Zero, IEC 60754-2 – Halogen Acid Gas Amount – Max. Conductivity = 10 µS/mm, IEC 60754-2 – Halogen Acid Gas Amount – Min. pH = 4.3
European Directive Compliance: EU Directive 2011/65/EU (RoHS 2)
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.66 Revision Date: 12-12-2023

Part Numbers

Variants
Item # Color Putup Type Length
50106FLS 010305M Black Reel 305 m
50106FLS-A500 Black Reel 500 m
50106FLS 006305M Blue Reel 305 m
50106FLS 008305M Grey Reel 305 m
