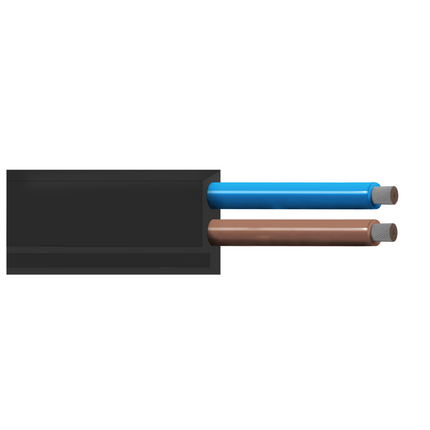

50097TPE - 2C1.5mm2, Cu. Cond., PVC Ins, TPE Jkt As-Interface Bus Flat Cable

50097TPE – 2C1.5mm2, Cu. Cond., PVC Ins, TPE Jkt As-Interface Bus Flat Cable

Call for Price

Compare
SKU: 50097TPE Categories: , , ,

Description

Product Overview

Suitable Applications: For appliactions upto and inculding 300V.

Construction Details

Conductor
Element No. of Elements Size Material
Conductor(s) 2 1.5 mm² TC – Tinned Copper (High Conductivity)
Insulation
Material Nom. Thickness Nom. Insulation Diameter Color Code
PVC – Polyvinyl Chloride 0.5 mm (0.020 in) 2.5 mm (0.098 in) Brown, Blue
Conductor Spacing Center-Center: 3.6 ± 0.2 mm
Outer Jacket
Material Nom. Thickness Nom. Thickness Flat Section Nom. Width
TPE – Thermoplastic Elastomer 0.55 mm (0.022 in) 6.5 mm (0.26 in)
4.0 mm (0.16 in) 10 mm (0.39 in)

Electrical Characteristics

Electricals
Max. Conductor DCR Nom. Capacitance Cond-to-Cond
13.7 Ohms @ 20 Deg C 80 pF/ft (260 pF/m)
Voltage
UL Voltage Rating Breakdown Voltage
300 V 2000 V

Mechanical Characteristics

Temperature
Operating
-30°C to +105°C

Standards and Compliance

Flammability / Reaction to Fire: FT4
AWM Compliance: AWM I/II A/B
CEC / C(UL) Compliance: C22.2 No.210.2
European Directive Compliance: EU Directive 2011/65/EU (RoHS 2)
APAC Compliance: China RoHS II (GB/T 26572-2011)
Other Standard Compliance(s): UL 758

Product Notes

Notes: UL 13, EN 50295, IEC 62026-2

History

Update and Revision: Revision Number: 0.9 Revision Date: 02-15-2024
