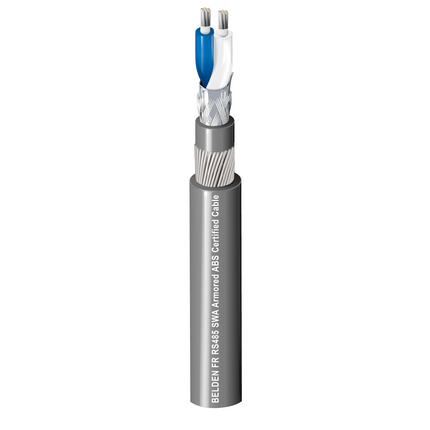

50031LS - RS485 FR, 1P 16AWG Str TC, MGT, XLPE Ins, OS+TC Brd, LSZH Inner Jkt, SWA, LSZH Outer Jkt, IEC60331-23, ABS Approved

50031LS – RS485 FR, 1P 16AWG Str TC, MGT, XLPE Ins, OS+TC Brd, LSZH Inner Jkt, SWA, LSZH Outer Jkt, IEC60331-23, ABS Approved

Call for Price

Compare
SKU: 50031LS Categories: , , ,

Description

Product Overview

Suitable Applications: Designed for applications which are used for RS 232/422/485, CANBUS, MODBUS communication protocols. Cable applications include motion oriented machine, machine control networks, temperature controllers, control panels, machine cutting tools, auxiliary equipment, SCADA communications, etc. These cables are used in emergency evacuation / shutdown systems in building automation, offshore, oil & gas and railway applications and are flame retardant according to IEC 60332-3-22 Category A

Construction Details

Conductor
Size Stranding Material
16 AWG Stranded TC – Tinned Copper
Insulation
Material Color Code Notes
Mica Glass Tape
XLPE White & Blue *XLPE (Electron-Beam Cross Linked Polyethylene)
Outer Shield
Shield Type Material Drainwire Type
Tape Bi-Laminate (Alum+Poly)
Braid Tinned Copper (TC) 19 AWG (7×27) TC
Inner Jacket
Material
LSZH – Low Smoke Zero Halogen (Flame Retardant)
Armor
Armor Type & Material
SWA – Steel Wire Armor
Outer Jacket
Material
LSZH – Low Smoke Zero Halogen (Flame Retardant)
Overall Cable Diameter (Nominal): 17.1 mm (0.673 in)

Electrical Characteristics

Electricals
Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Shield Nom. Characteristic Impedence
14.6 Ohm/km (4.45 Ohm/1000ft) 46 pF/m (14 pF/ft) 82 pF/m 120 Ohm
Table Notes: Nom. Inductance to Resistance
ratio (L/R): 25 µH/?
Voltage
Voltage Rating Breakdown Voltage
300 V 1.5 kVac / 5 min
Table Notes: Voltage Test in Water : 450Vac X 4 hours

Mechanical Characteristics

Temperature
Operating
-40°C To +90°C
Table Notes: Insulation Resistance ? 3670 M?*km
Bulk Cable Weight: 512 kg/km (344 lbs/1000ft)

Standards and Compliance

Environmental Suitability: Sunlight Resistance, UV Resistance, Oil Resistance, Oil Resistance
Flammability / Reaction to Fire: IEC 60332-1-2, IEC 60332-3-22
Resistance to Fire: IEC 60331-23-E90
Marine Compliance: ABS Type Approval Certificate 20-2029060-PDA
ISO/IEC Compliance: IEC 60092-376, IEC 61034-2 – Smoke Density Min Transmittance = Min. 70% as per IEC 61034-2
European Halogen Free Standards: IEC 60754-1 – Halogen Amount = Max 0.5%, IEC 60754-2 – Halogen Acid Gas Amount – Max. Conductivity = 10 µS/mm, IEC 60754-2 – Halogen Acid Gas Amount – Min. pH = 4.3
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2)
APAC Compliance: China RoHS II (GB/T 26572-2011)
Other Standard Compliance(s): Toxicity Index 5 as per EN 50305 / NF F63-305 (ITC)

Product Notes

Notes: Smoke Density ASTM D2843 Max. 40%

History

Update and Revision: Revision Number: 0.57 Revision Date: 02-15-2024

Part Numbers

Variants
Item # Color Putup Type Length EAN
50031LS-A305 Black Reel 305 m 8719605219930
50031LS 010500M Black Reel 500 m
50031LS 0101000M Black Reel 1,000 m
50031LS 060500M Grey Reel 500 m
50031LS 0601000M Grey Reel 1,000 m
