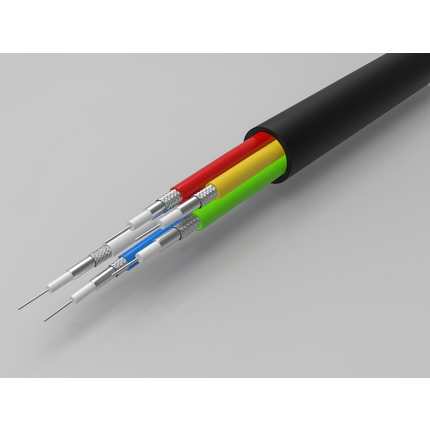

Product Overview
| Suitable Applications: |
SMPTE 2082-1 12 Gb/s UHDTV, SMPTE 2081-1 6 Gb/s UHDTV, SMPTE 424M 3 Gb/s HD-SDI 1080p |
Physical Characteristics (Overall)
| AWG |
Stranding |
Material |
Nominal Diameter |
No. of Coax |
| 20 |
Solid |
SC – Silvered Copper |
0.032 in |
5 |
| Material |
Nominal Diameter |
| PE – Polyethylene (Foam) |
0.145 in |
| Table Notes: |
Gas Injected |
| Type |
Layer |
Material |
Material Trade Name |
Coverage [%] |
| Tape |
1 |
Tri-Laminate (Alum+Poly+Alum) |
Duofoil® |
100% |
| Braid |
2 |
Tinned Copper (TC) |
|
95% |
| Material |
Nominal Diameter |
| PVC – Polyvinyl Chloride |
0.233 in |
| Material |
Nominal Diameter |
| PVC – Polyvinyl Chloride |
0.790 in |
Electrical Characteristics
| Nominal Conductor DCR |
Outer Conductor DCR |
| 10.2 Ohm/1000ft |
3.4 Ohm/1000ft |
| Nom. Capacitance Conductor to Shield |
| 16.1 pF/ft |
| Nominal Inductance |
| 0.107 µH/ft |
| Nominal Characteristic Impedance |
| 75 Ohm |
| Frequency [MHz] |
Minimum Return (RL) |
| 5 MHz – 1600 MHz |
23 dB |
| 1600 MHz – 4500 MHz |
21 dB |
| 4500 MHz – 12000 MHz |
15 dB |
High Frequency (Nominal/Typical)
| Frequency [MHz] |
Nom. Insertion Loss |
| 1 MHz |
0.30 dB/100ft |
| 3.58 MHz |
0.60 dB/100ft |
| 5 MHz |
0.63 dB/100ft |
| 6 MHz |
0.69 dB/100ft |
| 7 MHz |
0.74 dB/100ft |
| 10 MHz |
0.90 dB/100ft |
| 12 MHz |
0.91 dB/100ft |
| 25 MHz |
1.30 dB/100ft |
| 55 MHz |
1.98 dB/100ft |
| 67.5 MHz |
2.05 dB/100ft |
| 71.5 MHz |
2.1 dB/100ft |
| 88.5 MHz |
2.2 dB/100ft |
| 100 MHz |
2.3 dB/100ft |
| 135 MHz |
2.7 dB/100ft |
| 143 MHz |
2.8 dB/100ft |
| 180 MHz |
3.1 dB/100ft |
| 270 MHz |
3.8 dB/100ft |
| 360 MHz |
4.4 dB/100ft |
| 540 MHz |
5.5 dB/100ft |
| 720 MHz |
6.4 dB/100ft |
| 750 MHz |
6.5 dB/100ft |
| 1000 MHz |
7.6 dB/100ft |
| 1500 MHz |
9.3 dB/100ft |
| 2000 MHz |
10.8 dB/100ft |
| 2250 MHz |
11.5 dB/100ft |
| 3000 MHz |
13.4 dB/100ft |
| 4500 MHz |
16.7 dB/100ft |
| 6000 MHz |
19.7 dB/100ft |
| 12000 MHz |
28.7 dB/100ft |
| Nominal Delay |
Nominal Velocity of Propagation (VP) [%] |
| 1.22 ns/ft |
83% |
| UL Voltage Rating |
| 300 V RMS |
| Electrical Characteristics Notes: |
Return Loss: Fixed bridge and termination |
Temperature Range
| Operating Temperature Range: |
-20°C to +75°C |
Mechanical Characteristics
| Bulk Cable Weight: |
260 lbs |
| Max. Pull Tension: |
210 lbs |
| Min Bend Radius (Overall): |
7.9 in |
| Min Bend Radius (Each Coax): |
2.4 in |
Standards
| CEC/C(UL) Compliance: |
CMG |
Applicable Environmental and Other Programs
| EU Directive 2000/53/EC (ELV): |
Yes |
| EU Directive 2011/65/EU (RoHS 2): |
Yes |
| EU Directive 2012/19/EU (WEEE): |
Yes |
| EU Directive 2015/863/EU (RoHS 2 amendment): |
Yes |
| EU Directive Compliance: |
EU Directive 2000/53/EC (ELV); EU Directive 2002/96/EC (WEEE); EU Directive 2003/11/EC (BFR); EU Directive 2011/65/EU (ROHS II) |
| EU REACH SVHC Compliance (yyyy-mm-dd): |
2019-06-01 |
Suitability
| Suitability – Aerial: |
Yes – Black only, when supported by messenger wire |
| Suitability – Hazardous Locations: |
No |
| Suitability – Indoor: |
Yes |
| Suitability – Outdoor: |
Yes – Black only |
Flammability, LS0H, Toxicity Testing
| UL Flammability: |
UL1666 Vertical Shaft |
Plenum/Non-Plenum
Related Part Numbers
| Item # |
Color |
Put-Up Type |
Length |
| 4505RX5 B59CUT |
Black |
Reel |
|
| 4505RX5 B591000 |
Black |
Reel |
1,000 ft |
Product Notes
| Notes: |
Print legend includes sequential footage marks. |
History
| Update and Revision: |
Revision Number: 0.110 Revision Date: 11-27-2023 |
