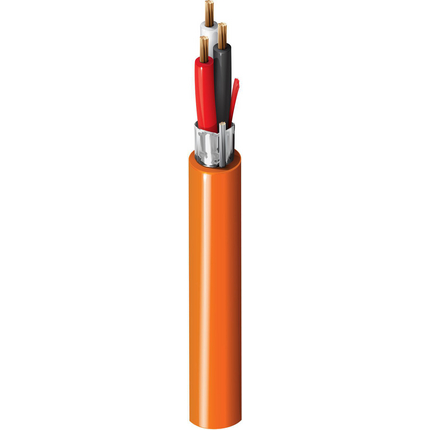

Product Overview
| Suitable Applications: |
Intercom/PA Systems, Sound/Audio Systems |
Physical Characteristics (Overall)
| AWG |
Stranding |
Material |
Nominal Diameter |
No. of Conductors |
| 20 |
7×28 |
BC – Bare Copper |
0.95 mm |
3 |
| Material |
Nominal Diameter |
Diameter +/- Tolerance |
Nominal Wall Thickness |
| LSZH – Low Smoke Zero Halogen (Flame Retardant) |
1.60 mm |
0.05 mm |
0.4 mm |
| Type |
Material |
Material Trade Name |
Coverage [%] |
Thickness of Foil |
Drainwire AWG |
| Tape |
Bi-Laminate (Alum+Poly) |
Beldfoil® |
100% |
9 µm |
AWG24/7 |
| Material |
Nominal Diameter |
Nominal Wall Thickness |
Ripcord |
| LSZH – Low Smoke Zero Halogen (Flame Retardant) |
6.0 mm |
1.2 mm |
Yes |
Electrical Characteristics
| Nominal Conductor DCR |
Nominal Outer Shield DCR |
| 34 Ohm/km |
37 Ohm/km |
| Nom. Capacitance Conductor to Conductor |
Nom. Capacitance Conductor to Other Conductor to Shield |
| 110 pF/m |
200 pF/m |
Temperature Range
| Installation Temperature Range: |
-20°C To +70°C |
| Storage Temperature Range: |
-30°C To +70°C |
| Operating Temperature Range: |
-20°C To +70°C |
Mechanical Characteristics
| Min. Bend Radius During Installation: |
60 mm |
| Min Setting Radius: |
30 mm |
Standards
| CPR Euroclass: |
Cca-s1,d1,a1 |
Applicable Environmental and Other Programs
| Environmental Space: |
Indoor – Euroclass Cca |
Flammability, LS0H, Toxicity Testing
| IEC Flammability: |
IEC 60332-1-2 |
| IEC 60754-2 – Halogen Acid Gas Amount – Max. Conductivity: |
2.5 µS/mm |
| IEC 60754-2 – Halogen Acid Gas Amount – Min. pH: |
4.3 |
| IEC 61034-2 – Smoke Density Min. Transmittance: |
60% |
History
| Update and Revision: |
Revision Number: 0.10 Revision Date: 11-27-2023 |
