Product Overview
| Suitable Applications: |
Speaker cable for use in indoor or outdoor applications |
Physical Characteristics (Overall)
| Element |
AWG |
Stranding |
Material |
No. of Conductors |
| Conductor(s) |
13 |
320×38 |
BC-OFHC – Oxygen-Free Bare Copper (High Conductivity) |
7 |
| Central Conductor |
|
|
|
1 |
| Element |
Material |
Nominal Diameter |
Diameter +/- Tolerance |
| Conductor(s) |
PE – Polyethylene |
2.85 mm |
0.1 mm |
| Central Conductor |
PE – Polyethylene |
3.75 mm |
0.1 mm |
| Number |
Color |
| Wire 1 |
Blue |
| Wire 2 |
Black |
| Wire 3 |
White |
| Wire 4 |
Green |
| Wire 5 |
Yellow |
| Wire 6 |
Purple |
| Wire 7 |
Brown |
| Number |
Color |
| Central conductor |
Red |
| Type |
Material |
Coverage [%] |
| Tape |
Bi-Laminate (Alum+Poly) |
100% |
| Material |
Nominal Diameter |
Diameter +/- Tolerance |
| LSZH – Low Smoke Zero Halogen (Flame Retardant) |
12.4 mm |
0.3 mm |

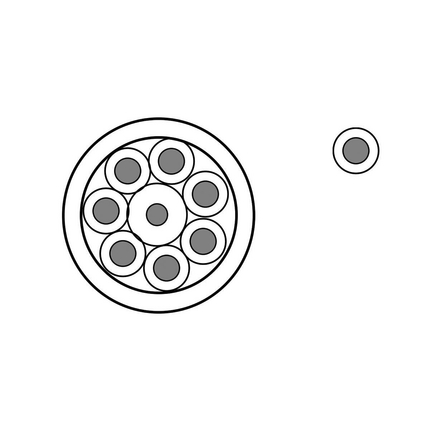

Construction and Dimensions
| Description |
| 8 conductors elements twisted together and covered with a Non woven foil |
Electrical Characteristics
| Max. Conductor DCR |
| 8 Ohm/km |
| Max. Recommended Current [A] |
| 9 A |
Temperature Range
| Storage Temperature Range: |
-15°C To +60°C |
| Operating Temperature Range: |
-5°C To +60°C |
| Other Temp Range: |
-5-+60 °C |
Mechanical Characteristics
Applicable Environmental and Other Programs
| Environmental Space: |
Indoor |
Related Part Numbers
| Item # |
Color |
Put-Up Type |
Length |
EAN |
| 43907NH.00500 |
Gray |
Reel |
500 m |
8719605006882 |
History
| Update and Revision: |
Revision Number: 0.120 Revision Date: 09-15-2023 |
